>Residential energy storage battery cabinet

Please fill in the email and download the information immediately

Megarevo’s residential energy storage battery cabinet with high energy density LFP batteries. The capacity of the system can be flexibly configured between

2.4kWh ~9.2kWh. With the BMS management system, it has a cycle life of more than 10 years and is suitable for installation in villas, office areas and other scenarios.

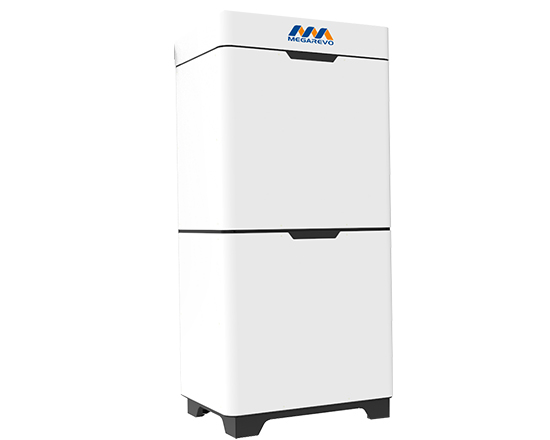

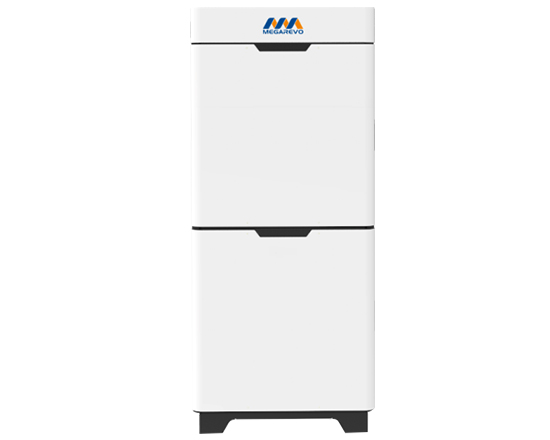

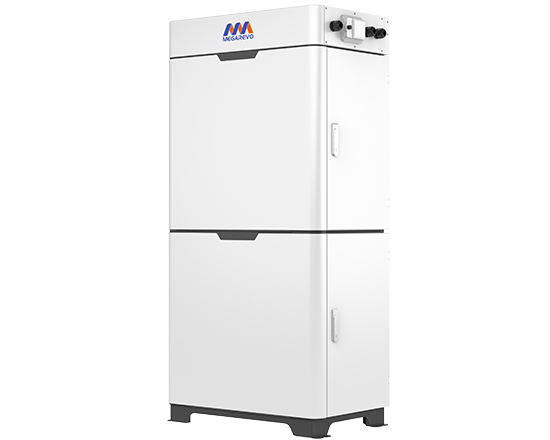

Residential energy storage battery cabinet
Residential energy storage battery cabinet
Residential energy storage battery cabinet
Residential energy storage battery cabinet
Residential energy storage battery cabinet
Residential energy storage battery cabinet
Product Highlights
Simple and flexible
Modular design, easy installation and operation;
Support battery expansion;
Economical &friendly
System cycle life ≥ 10 years;
Support peak load shifting and important load backup;
Intelligent and efficient
Integrated BMS management system to support intelligent management;
Compatible with CANbus/RS485 communication interface
Choose our benefits

Integrated design for easy installation

Highly cost-effective

Support mainstream hybrid inverters

Capacity can be flexibly configured

Support 7*24 remote service

Technical specificationE072B048E144B048
DC(battery)
Total energy(kWh)2.4/4.8/7.29.6/12/14.4
Nominal voltage(V)48V
Discharge voltage(V)45~54
Charging voltage(V)52.5~54
Max. charging current(A)25/50/75100/120
Max. discharge current(A)25/50/75100/120
Ingress protectionIP21
General data
Dimension W*D*H (mm)530*350*680 530*350*1200
Weight(kg)83163
