MEGAREVO - 6-12kW American ESS Split-Phase Inverter

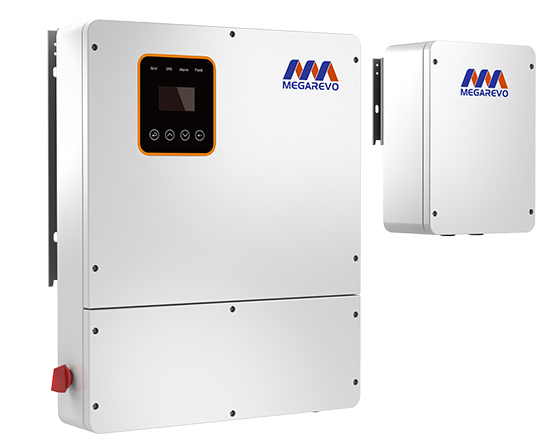

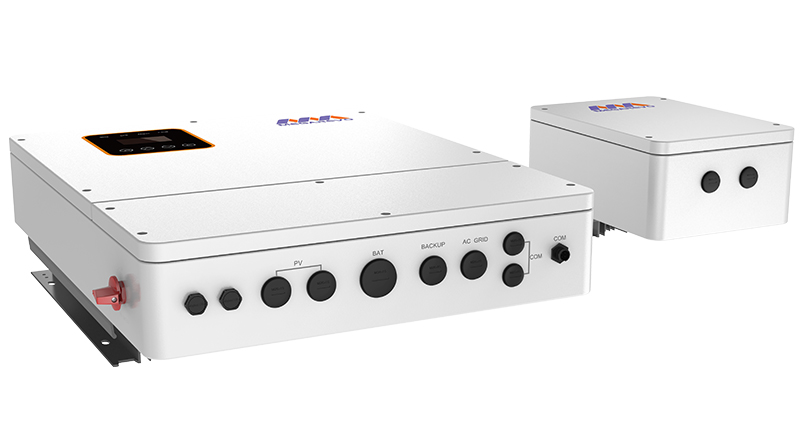

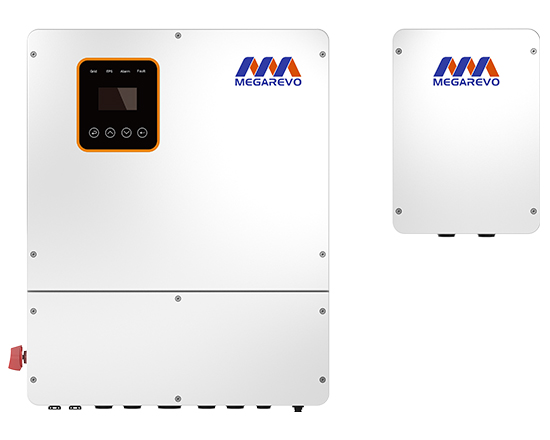

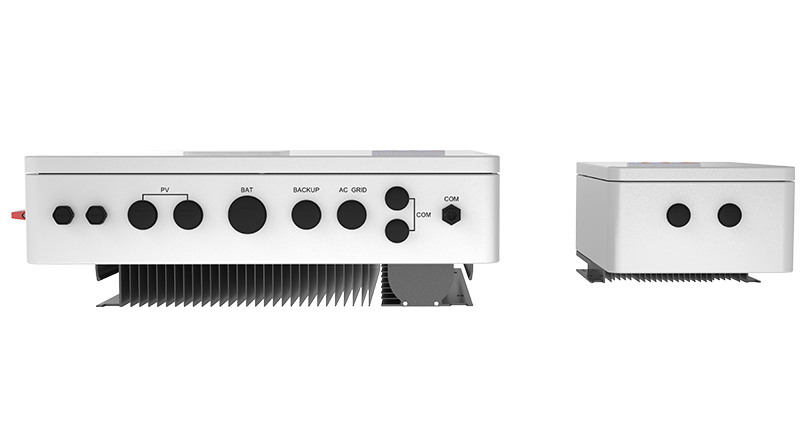

The H1 Series High-Voltage hybrid inverter consists of an inverter and transformer designed for the American market. This split-phase inverter meets the battery voltage range of 85~400V and covers a power range of 6-12kW. Accordingly, it’s compatible with a wide range of mainstream batteries and is suitable for large-capacity home energy storage systems in North America.

American ESS split- phase inverter （battery voltage＞80V）

Product Highlights

Safe and reliable

Passed UL 1741:2021, IEEE 1547.1, UL1699B test certification; ①With over-voltage, over-current, over-temperature protection, compatible with anti-zero export function;

Flexible and efficient

Support full power charge and discharge, better charge and discharge efficiency;

Support 100% unbalanced load capacity;

Intelligent and friendly

Customizable I / O interface, more flexible application;

Support remote monitoring, remote upgrade and automatic battery management;

Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefit

keeping critical load operation in power of

Support 7*24 remote service

Technical specification	R6KH1NA	R8KH1NA	R10KH1NA	R12KH1NA
Input (PV)
Max. power(kW)	7.8	10.4	13	15.6
Max. DC voltage(V)	500
MPPT voltage range(V)	125~500
Max.Input current of single MPPT(A)	12
MPPT tracker/strings	4/1
AC output
Rated output power(kVA)	6	8	10	12
Max. apparent Power (kVA)	6.6	8.8	11	12
Max. output current(A)	27.5	36.7	45.8	50
Grid voltage/range(V)	240/211~264
Frequency (Hz)	50 /60
PF	0.8lagging-0.8leading
THDi	<3%
AC output topology	Split phase、single phase
Battery
Battery voltage range(V)	85~400
Max. charging voltage(V)	400
Full battery voltage(V)	85	110	140	160
Max. charge/discharge current(A)	80/80
Battery type	Lithium /Lead-acid
Communication interface	CAN,RS485
EPS output
Rated power (kVA)	6	8	10	12
Rated output voltage(V)	220-240 /110-120
Rated frequency(Hz)	50/60
Automatic switching time (ms)	<20
THDu	＜2%
Overload capacity	110%,30S/120%,10S/150%,0.02S
General data
DC Max. efficiency	≥98.2%
CEC efficiency	≥97.2%
Ingress protection	IP65/NEMA 3R
Noise emission(dB)	＜25	＜25	＜29	＜29
Operation temperature(℃)	-25～60
Cooling	Natural
Relative humidity	0 ~95%（non-condensing）
Operation altitude (m)	2,000 (>2,000 Derating)
Weight(kg)	34
Dimensions W * D * H (mm)	560* 220* 680
Self-consumption(W)	＜20
Display and communication
Display	LCD
Interface:RS485/Wifi/4G/CAN	Yes/ Opt/ Opt/ Yes
Safety standard	UL1741SA all options, UL1699B, CSA 22.2
EMC	FCC Part 15, Class B
On-grid	IEEE 1547, Rule 21, Cpuc Rule 21, SRD V2.0 UL1741SA, UL1741SB
