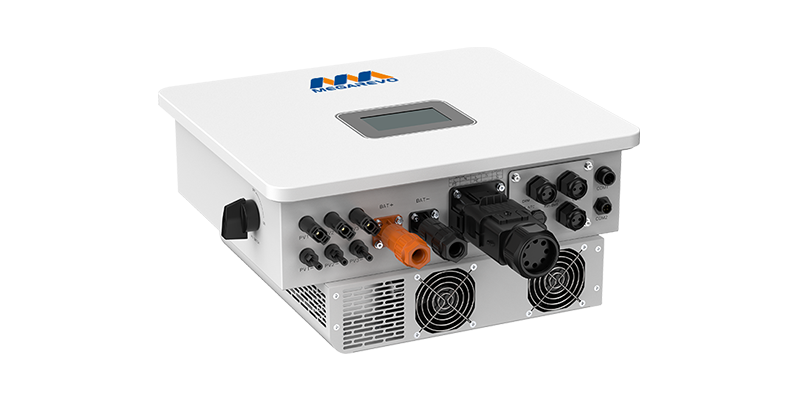

Based on the excellent performance of the previous generation of products, G2 Series Energy Storage Inverter has optimized the volume and weight of the product, making it more compact and lightweight, reducing labor installation costs by 50%, and the full load efficiency has been increased by 0.5%. It is compatible with 18.5A solar panels and can support up to 12kW of power output. This allows for greater flexibility in system design and integration, users can expand the capacity according to their energy storage needs. Moreover, it supports 6 machines in parallel.
Save more installation, commissioning costs
Reduce the use of fossil fuels and be more environmentally friendly
Increase the penetration of renewable energy
Continuous and stable power supply
PV expansion will be more convenient in the future
| Model | R3KL1-AC | R3K6L1-AC | R4KL1-AC | R4K6L1-AC | R5KL1-AC | R6KL1-AC | R8KL1-AC |
| R3KL1D-AC | R3K6L1D-AC | R4KL1D-AC | R4K6L1D-AC | R5KL1D-AC | R6KL1D-AC | R8KL1D-AC | |
| AC output | |||||||
| Rated power (kW) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | 8 |
| Max.AC current output to grid (A) | 14.3 | 16 | 19.1 | 20 | 21.7 | 28.7 | 38.3 |
| Nominal voltage/range (V) | 230 /176~270 | ||||||
| Frequency (Hz) | 50 /60 | ||||||
| Power factor | 1(0.8 leading-0.8 lagging) | ||||||
| THDi | <3% | ||||||
| AC grid type | L+N+PE | ||||||
| Battery | |||||||
| Battery voltage range (V) | 40~58 | ||||||
| Max. charging voltage (V) | 58 | ||||||
| Max. charge/discharge current (A) | 60/60 | 72/72 | 80/80 | 92/92 | 100/100 | 120/120 | 160/160 |
| Battery type | Lithium /Lead-acid | ||||||
| Communication Interface | CAN/RS485 | ||||||
Max.battery output power/ duration(kW/min) | / | / | / | / | / | / | 8/20 |
| EPS output | |||||||
| Rated power (kW) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | 8 |
| Rated voltage (V) | 230 | ||||||
| Max.AC current output to grid (A) | 14.3 | 16 | 19.1 | 20 | 21.7 | 28.7 | 38.3 |
| Rated frequency (Hz) | 50 / 60 | ||||||
| Automatic switchover time (ms) | <10 | ||||||
| THDu | <2% | ||||||
| Overload capacity | 110%, 60S/ 120%, 30S/ 150%, 10S | ||||||
| General data | |||||||
| Battery chage/dischage efficiency | 96% | ||||||
| PV Max. efficiency | 98% | ||||||
| Europe efficiency | 97% | ||||||
| MPPT efficiency | 99.9% | ||||||
| Ingress protection | IP65 | ||||||
| Noise emission (dB) | <35 | ||||||
| Operation temperature (℃) | -25～60 | ||||||
| Cooling | Natural | ||||||
| Relative humidity | 0 ~95%（non-condensing） | ||||||
| Operating altitude (m) | 2,000 (>2,000 Derating) | ||||||
| Dimensions W*D*H (mm) | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:484.5*220*499.7 Without Generator:484.5*220*467 |
| Net weight (kg) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 22(23 Standard Model) |
| Topology | Non-isolated | ||||||
| Standby loss(W) | <15 | ||||||
| Display | Optional (colorful touch screen /no screen) | ||||||
| Interface:RS485/Wifi/4G/CAN/DRM | Yes/Opt/Opt/Yes/Yes | ||||||
| Model | R3KL1-G2 | R3K6L1-G2 | R4KL1-G2 | R4K6L1-G2 | R5KL1-G2 | R6KL1-G2 | R8KL1-G2 |
| R3KL1D-G2 | R3K6L1D-G2 | R4KL1D-G2 | R4K6L1D-G2 | R5KL1D-G2 | R6KL1D-G2 | R8KL1D-G2 | |
| R3KL1DA-G2 | R3K6L1DA-G2 | R4KL1DA-G2 | R4K6L1DA-G2 | R5KL1DA-G2 | R6KL1DA-G2 | R8KL1DA-G2 | |
| PV string input | |||||||
| Max. Input power (kW) | 4.5 | 5.4 | 6 | 6.9 | 7.5 | 9 | 12 |
| Start-up voltage (V) | 100 | ||||||
| Max. PV input voltage (V) | 550 | ||||||
| MPPT range/nominal (V) | 80~500/360 | ||||||
| Max.input current of single MPPT (A) | 16/16 | 16/16 | 16/16 | 16/16 | 16/16 | 16/16 | 16/32 |
| Max. short-circuit current (A) | 18.5/18.5 | 18.5/18.5 | 18.5/18.5 | 18.5/18.5 | 18.5/18.5 | 18.5/18.5 | 18.5/37 |
| AC output | |||||||
| Rated power (kW) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | 8 |
| Max.AC current output to grid (A) | 14.3 | 16 | 19.1 | 20 | 21.7 | 28.7 | 38.3 |
| Nominal voltage/range (V) | 230 /176~270 | ||||||
| Frequency (Hz) | 50 /60 | ||||||
| Power factor | 1(0.8 leading-0.8 lagging) | ||||||
| THDi | <3% | ||||||
| AC grid type | L+N+PE | ||||||
| Battery | |||||||
| Battery voltage range (V) | 40~58 | ||||||
| Max. charging voltage (V) | 58 | ||||||
| Max. charge/discharge current (A) | 60/60 | 72/72 | 80/80 | 92/92 | 100/100 | 120/120 | 160/160 |
| Battery type | Lithium /Lead-acid | ||||||
| Communication Interface | CAN/RS485 | ||||||
Max.battery output power/ duration(kW/min) | / | / | / | / | / | / | 8/20 |
| EPS output | |||||||
| Rated power (kW) | 3 | 3.68 | 4 | 4.6 | 5 | 6 | 8 |
| Rated voltage (V) | 230 | ||||||
| Max.AC current output to grid (A) | 14.3 | 16 | 19.1 | 20 | 21.7 | 28.7 | 38.3 |
| Rated frequency (Hz) | 50 / 60 | ||||||
| Automatic switchover time (ms) | <10 | ||||||
| THDu | <2% | ||||||
| Overload capacity | 110%, 60S/ 120%, 30S/ 150%, 10S | ||||||
| General data | |||||||
| Battery chage/dischage efficiency | 96% | ||||||
| PV Max. efficiency | 98% | ||||||
| Europe efficiency | 97% | ||||||
| MPPT efficiency | 99.9% | ||||||
| Ingress protection | IP65 | ||||||
| Noise emission (dB) | <35 | ||||||
| Operation temperature (℃) | -25～60 | ||||||
| Cooling | Natural | ||||||
| Relative humidity | 0 ~95%（non-condensing） | ||||||
| Operating altitude (m) | 2,000 (>2,000 Derating) | ||||||
| Dimensions W*D*H (mm) | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:454.5*220*499. 7 Without Generator:454.5*220*467 | With Generator:484.5*220*499.7 Without Generator:484.5*220*467 |
| Net weight (kg) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 19（20 With Generator Input) | 22(23 Standard Model) |
| Topology | Non-isolated | ||||||
| Standby loss(W) | <15 | ||||||
| Display | Optional (colorful touch screen /no screen) | ||||||
| Interface:RS485/Wifi/4G/CAN/DRM | Yes/Opt/Opt/Yes/Yes | ||||||

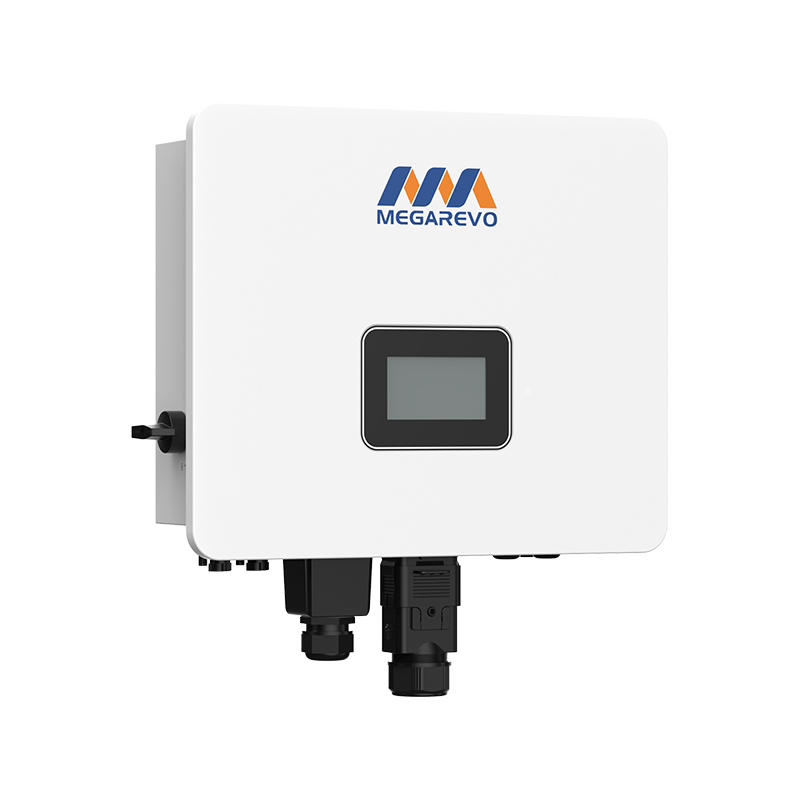

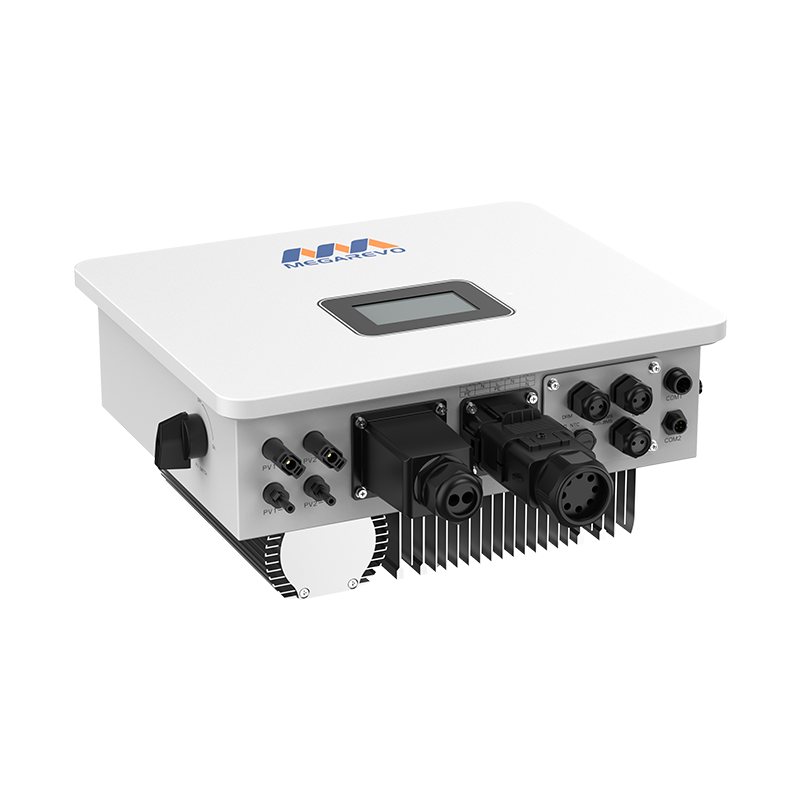

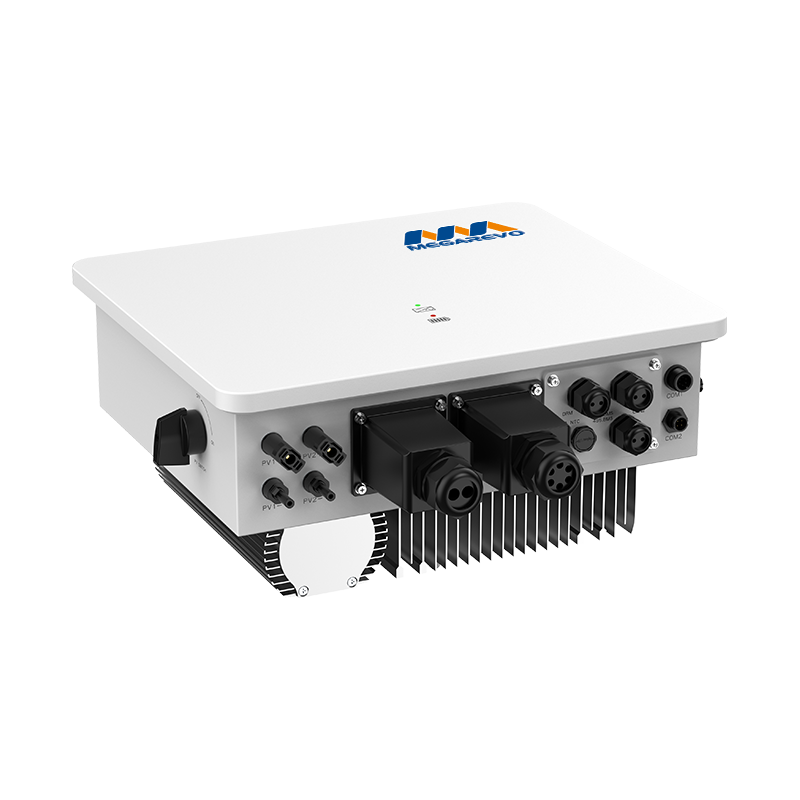

| Model | R3KL1-G2S | R3K6L1-G2S | R4KL1-G2S | R4K6L1-G2S | R5KL1-G2S | R6KL1-G2S |
| R3KL1A-G2S | R3K6L1A-G2S | R4KL1A-G2S | R4K6L1A-G2S | R5KL1A-G2S | R6KL1A-G2S | |
| R3KL1D-G2S | R3K6L1D-G2S | R4KL1D-G2S | R4K6L1D-G2S | R5KL1D-G2S | R6KL1D-G2S | |
| R3KL1DA-G2S | R3K6L1DA-G2S | R4KL1DA-G2S | R4K6L1DA-G2S | R5KL1DA-G2S | R6KL1DA-G2S | |
| DC input | ||||||
| Max. power (kW) | 4.5 | 5.4 | 6 | 6.9 | 7.5 | 9 |
| Start-up voltage (V) | 100 | |||||
| Max.DC voltage (V) | 550 | |||||
| MPPT voltage range/rated voltage(V) | 80-500/360 | |||||
| PV/(Isc) (A) | 24/24 | |||||
| Max.input current of each component (A) | 16/16 | |||||
| No. of MPPT | 2 | |||||
| No.of strings per MPPT tracker | 1/1 | |||||
| AC output | ||||||
| Rated output power (kVA/kW) | 3/3 | 3.68/3.68 | 4/4 | 4.6/4.6 | 5/5 | 6/6 |
| Max output power (kVA) | 3.3 | 3.68 | 4.4 | 4.6 | 5 | 6.6 |
| Max. output current (A) | 14.3 | 16 | 19.1 | 20 | 21.7 | 28.7 |
| Grid voltage/range (Vac) | 230/176 ~ 270 | |||||
| Rate grid frequency (Hz) | 50/60 | |||||
Power facto | 1(0.8leading…0.8lagging) | |||||
| THDi | < 3% | |||||
| AC grid type | L+N+PE | |||||
| Battery | ||||||
| Battery voltage range (V) | 40~58 | |||||
| Max. charging voltage (V) | 58 | |||||
| Max. charge/discharge current (A) | 60/60 | 72/72 | 80/80 | 92/92 | 100/100 | 120/120 |
| Communication interface | CAN/485 | |||||
| Emergency power output | ||||||
| Rated power (kVA/kW) | 3/3 | 3.68/3.68 | 4/4 | 4.6/4.6 | 5/5 | 6/6 |
| Rated output voltage (Vac) | 230 | |||||
| Rated output current (A) | 13 | 16 | 17.4 | 20 | 21.7 | 26 |
| Rated output frequency (Hz) | 50/60 | |||||
| Automatic switchover time (ms) | ≤10 | |||||
| THDu | <2% | |||||
| General data | ||||||
| Battery chage/dischage efficiency | 96% | |||||
| Max. efficiency | 97.2% | |||||
| Europe efficiency | 97% | |||||
| MPPT efficiency | 99.9% | |||||
| Ingress protection | IP65 | |||||
| Noise emission (dB) | <35 | |||||
| Operation temperature (℃) | -25～60 | |||||
| Cooling | Natural | |||||
| Relative humidity | 0 ~95%（Non-condensing） | |||||
| Operating altitude (m) | 2,000 (>2,000 Derating) | |||||
| Dimensions W*D*H (mm) | 455*215*385 | |||||
| Net weight (kg) | 20.7 | |||||
| Isolation transformer | / | |||||
| Standby loss (W) | <15 | |||||
| Display and communication | ||||||
| Display | / | |||||
Communication interface RS485/Wifi/GPRS/CAN/DRM | Yes/Opt/Opt/Yes/Yes | |||||

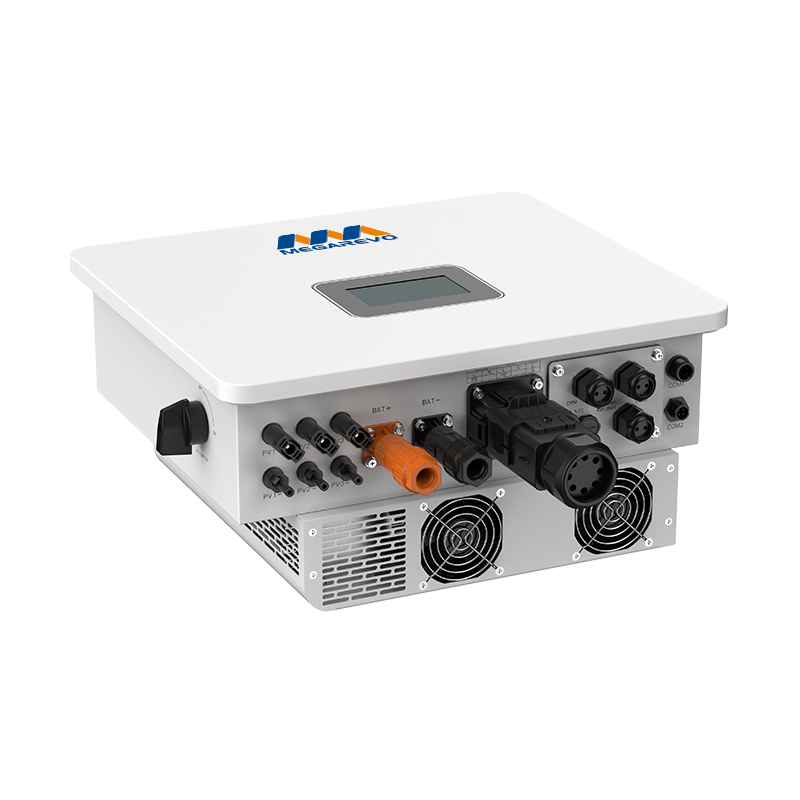

| Model | R8KL1A-G2S | R8KL1DA-G2S | R10KL1A-G2S | R10KL1DA-G2S |
| DC input | ||||
| Max. power (kW) | 12 | 15 | ||
| Start-up voltage (V) | 100 | |||
| Max. voltage (V) | 550 | |||
| MPPT voltage range/rated voltage(V) | 80-500/360 | |||
| PV/(Isc) (A) | 24 | |||
| Max.input current of each component (A) | 16 | |||
| No. of MPPT | 2 | |||
| No.of strings per MPPT tracker | 1/2 | |||
| AC output | ||||
| Rated output power (kVA/kW) | 8/8 | 10/10 | ||
| Max output power (kVA) | 8.8 | 10 | ||
| Max. output current (A) | 38.3 | 43.5 | ||
| Grid voltage/range (Vac) | 230/176 ~ 270 | |||
| Rate grid frequency (Hz) | 50/60 | |||
| Power factor | 1(0.8leading…0.8lagging) | |||
| THDi | < 3% | |||
| AC grid type | L+N+PE | |||
| Battery | ||||
| Battery voltage range (V) | 40~58 | |||
| Max. charging voltage (V) | 58 | |||
| Max. charge/discharge current (A) | 160/160 | 200/200 | ||
| Communication interface | CAN/485 | |||
| Emergency power output | ||||
| Rated power (kVA/kW) | 8/8 | 10/10 | ||
| Rated output voltage (Vac) | 230 | |||
| Rated output current (A) | 34.8 | 43.5 | ||
| Rated output frequency (Hz) | 50/60 | |||
| Automatic switchover time (ms) | ≤10 | |||
| THDu | <2% | |||
| General data | ||||
| Battery chage/dischage efficiency | 95.6% | |||
| Max. efficiency | 97.2% | |||
| Europe efficiency | 96.5% | |||
| MPPT efficiency | 99.9% | |||
| Ingress protection | IP65 | |||
| Noise emission (dB) | <35 | |||
| Operation temperature (℃) | -25～60 | |||
| Cooling | Natural | |||
| Relative humidity | 0 ~95%（Non-condensing） | |||
| Operating altitude (m) | 0~2000m（Derating over 2000m） | |||
| Dimensions W*D*H (mm) | 486×231×530(with generator port) | |||
| Net weight (kg) | 25.8 | |||
| Isolation transformer | / | |||
| Standby loss (W) | <15 | |||
| Display and communication | ||||
| Display | / | |||
Communication interface RS485/Wifi/GPRS/CAN/DRM | Yes/Opt/Opt/Yes/Yes | |||
