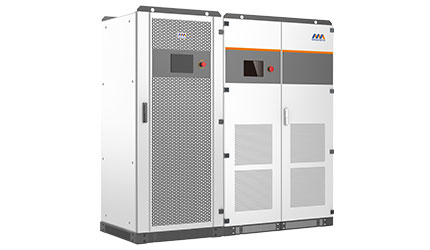

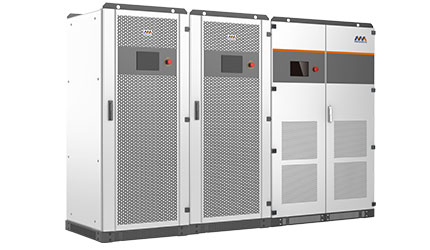

MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, which greatly improves customer deployment efficiency and reduces installation costs. PV capacity can be flexibly configured, which greatly improves system availability and is suitable for the remote areas and islands where power is relatively weak.

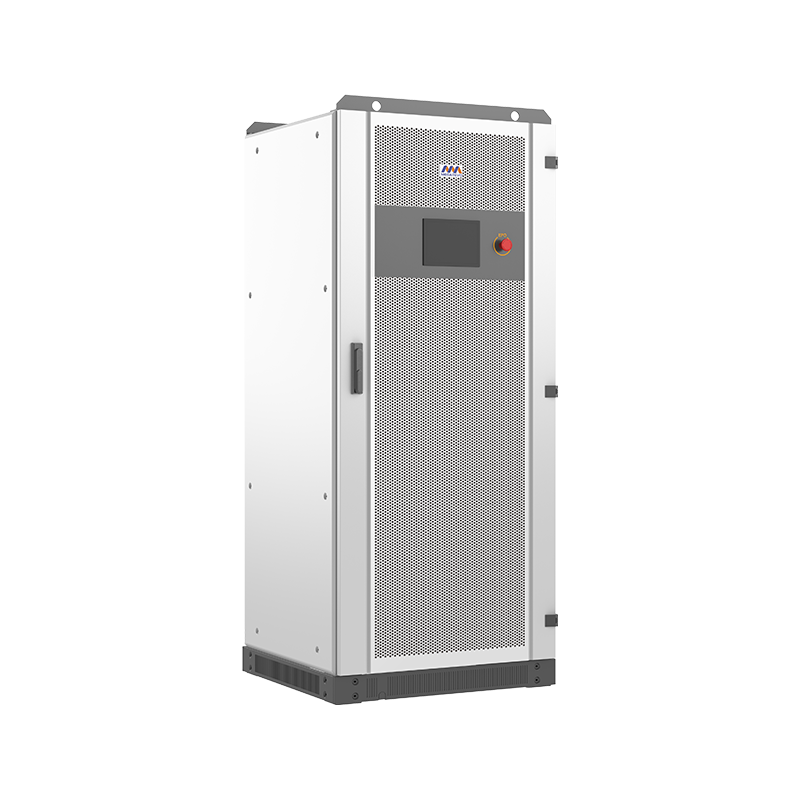

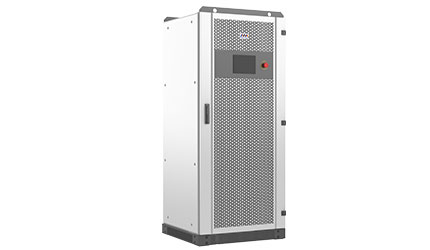

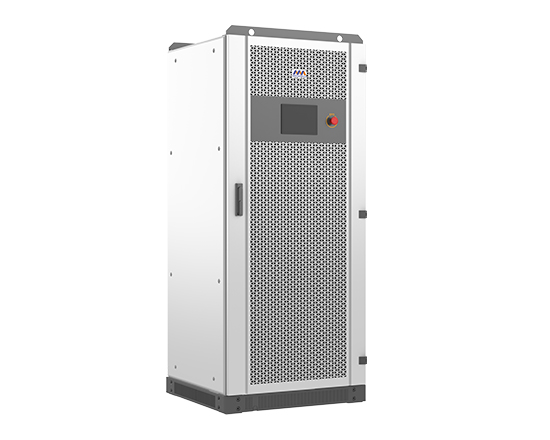

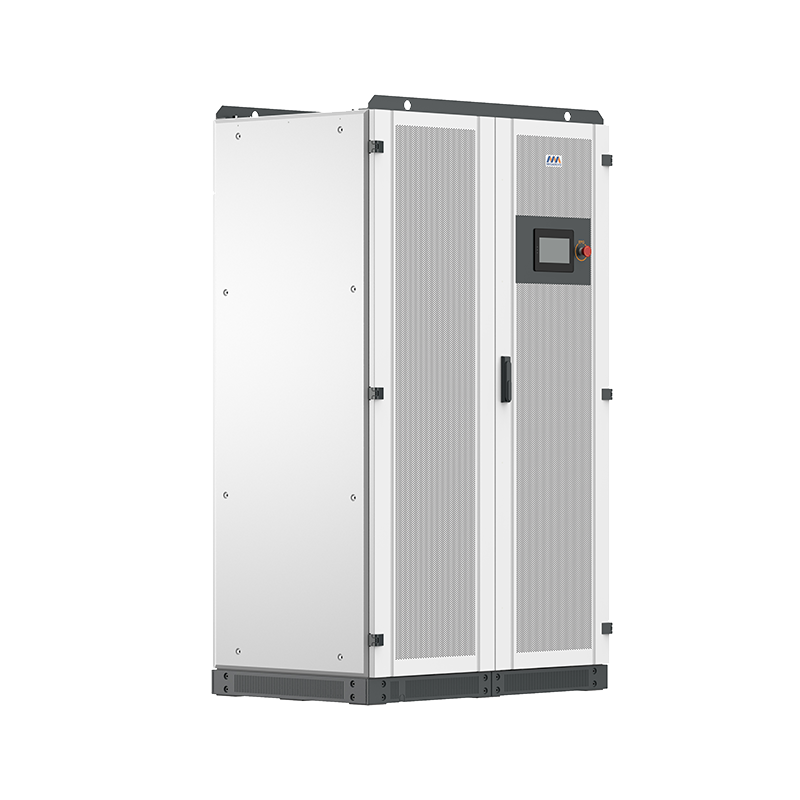

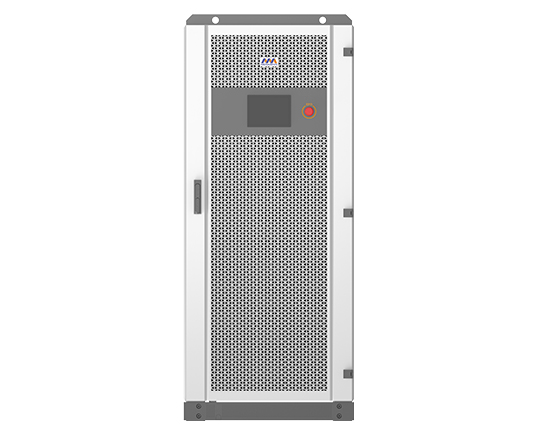

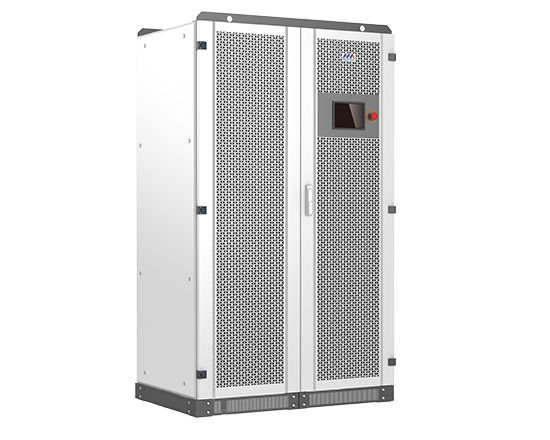

MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
MPS Hybrid inverter
Product Highlights
Safe and reliable
Passed EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116, IEC 61683 test certification;
Flexible configuration
Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly;
Convenient operation and maintenance
Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.
Choose our benefits

Save more installation, commissioning costs

Reduce the use of fossil fuels and be more environmentally friendly

Increase the penetration of renewable energy

Continuous and stable power supply

PV expansion will be more convenient in the future

MPS0030&50
SpecificationMPS0030
MPS0050
AC(on-grid)
Rated power(kW)30
50
Rated voltage(V)400
Rated current (A)43
72
Voltage range(V)320~460
Rated frequency (Hz)50/60
AC connection3W+N+PE
AC(Off Grid)
Rated output power(kW)30
50
Rated current(A)43
72
PV input
Max.PV input voltage(V)1000
Max.PV power(kW)60/120
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range(V)250~850
320~850
Max. charging power(kW)60/120
General data
Dimension W*D*H(mm)800*800*1900
Weight(kg)620/650
720/750
CertificatesTUV,CE
MPS00100&150
SpecificationMPS0100
MPS0150
AC(on-grid)
Rated power(kW)100
150
Rated voltage(V)400
Rated current (A)144
216
Voltage range(V)320~460
Rated frequency (Hz)50/60
AC connection3W+N+PE
AC(Off Grid)
Rated output power(kW)100

150
Rated current(A)144
216
PV input
Max.PV input voltage(V)1000
Max.PV power(kW)120/180/240
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range(V)420~850
Max. charging power(kW)120/180/240
General data
Dimension W*D*H(mm)1200*800*2050
Weight(kg)1120/1150/1180
1250/1280/1310
CertificatesTUV,CE
MPS0250
SpecificationMPS0250
AC(on-grid)
Rated power(kW)250
Rated voltage(V)400
Rated current (A)361
Voltage range(V)320~460
Rated frequency (Hz)50/60
AC connection3W+N+PE
AC(Off Grid)
Rated output power(kW)250
Rated current(A)361
PV input
Max.PV input voltage(V)1000
Max.PV power(kW)300/360
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range(V)420~850
Max. charging power(kW)300/360
General data
Dimension W*D*H(mm)1800*800*2050
Weight(kg)1980/2010
CertificatesTUV,CE
MPS0500
SpecificationMPS0500
AC(on-grid)
Rated power(kW)500
Rated voltage(V)400
Rated current (A)722
Voltage range(V)320~460
Rated frequency (Hz)50/60
AC connection3W+N+PE
AC(Off Grid)
Rated output power(kW)500
Rated current(A)722
PV input
Max.PV input voltage(V)1000
Max.PV power(kW)600/660/720
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range(V)500~850
Max. charging power(kW)600/660/720
General data
Dimension W*D*H(mm)2800*1050*2050
Weight(kg)3265/3295/3325
CertificatesTUV,CE
