>Power Conversion System

Please fill in the email and download the information immediately

MEGA series isolated energy storage converter is developed based on the application requirements of large C&I such as peak load shifting, battery backup, etc. It adopts full

digital control technology, integrates the leading technological achievements of contemporary power electronics, and the highest efficiency of the product reaches 97.5%; Support multi-machine parallel function, can meet the power demand of 30KW~3MW.

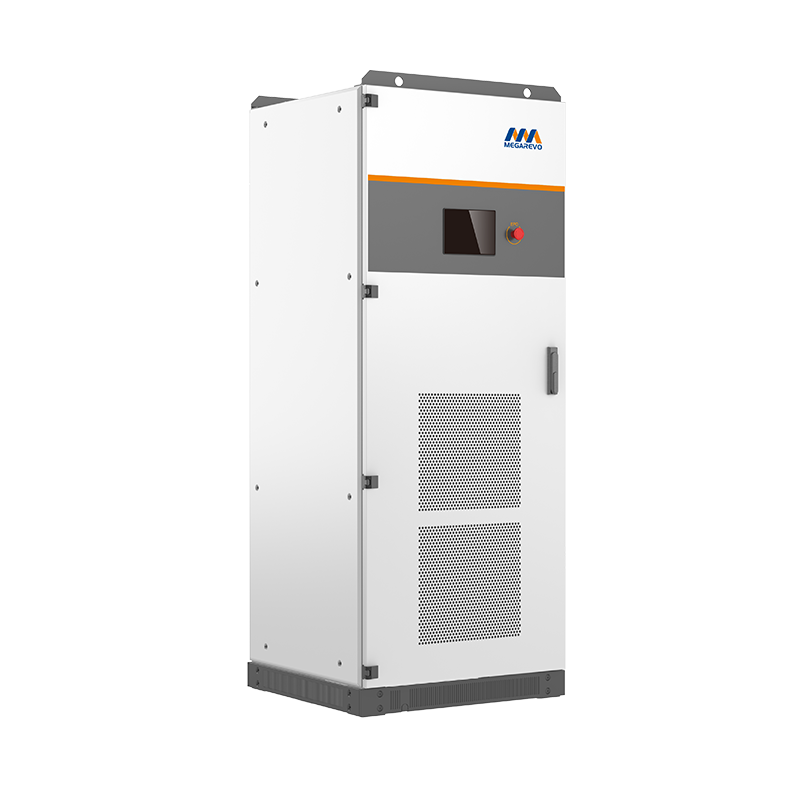

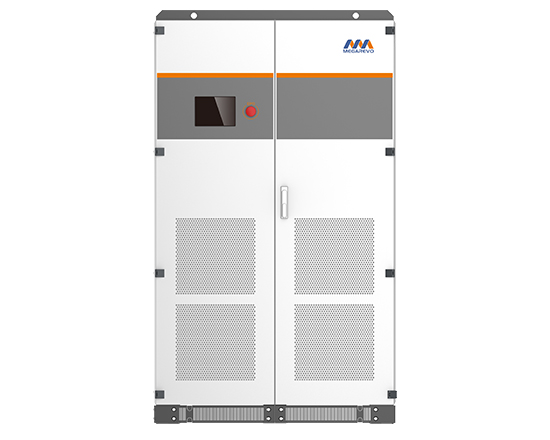

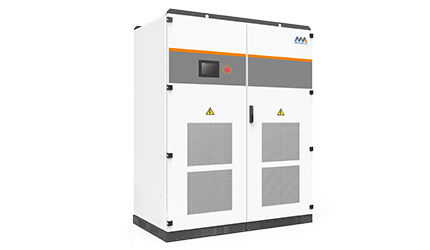

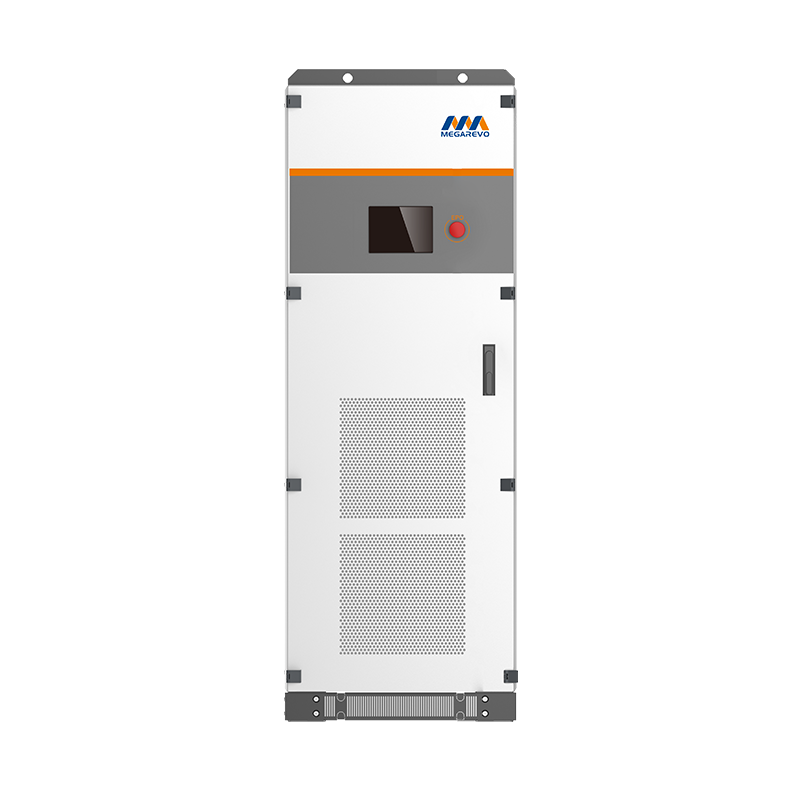

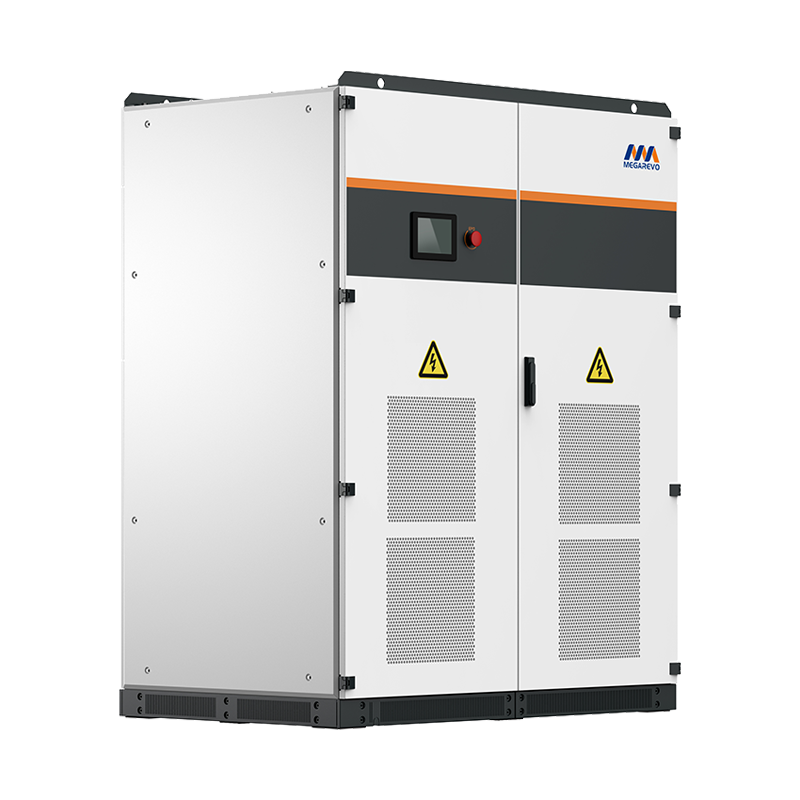

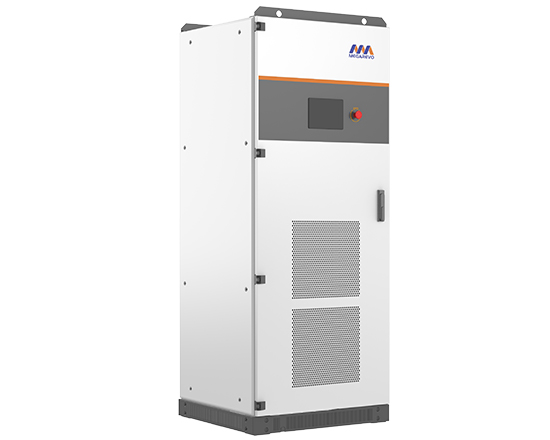

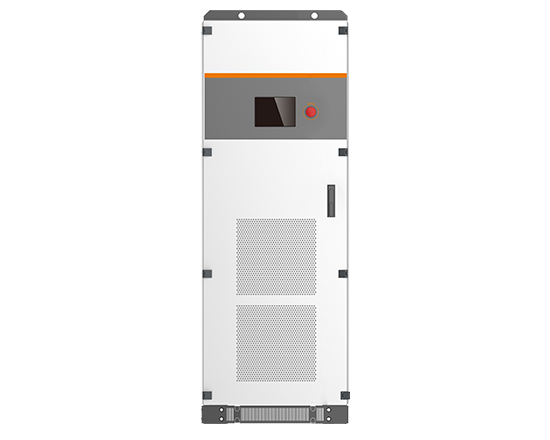

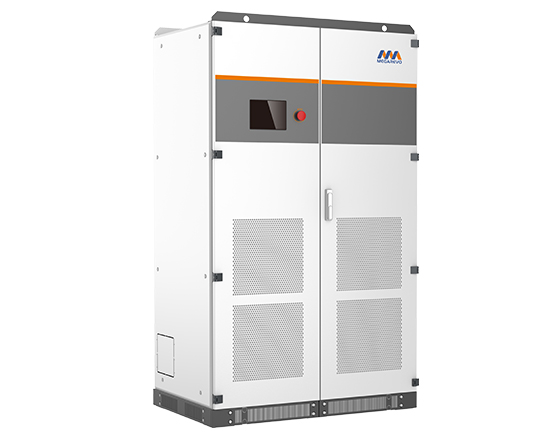

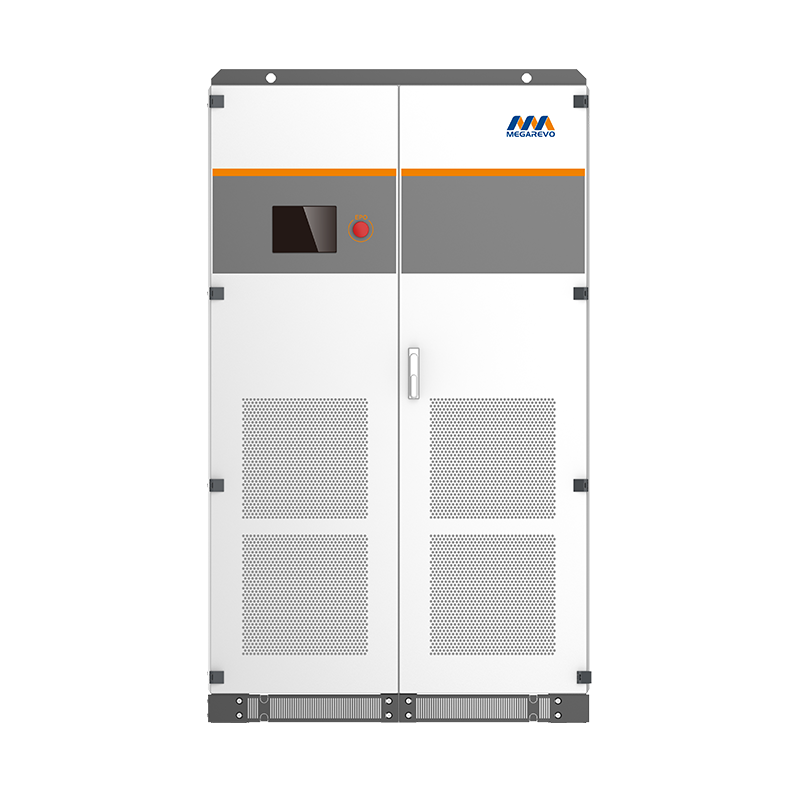

Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Product Highlights
Safe and reliable
Passed IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC certification test;
More than 400MW application cases , "zero" safety accident;
Flexible configuration
Support multiple sets of parallel use, covering wide power range of 30kW-3000kW;
Compatible with LFP , lead-acid and other batteries;
Convenient operation and maintenance
Built-in simple EMS function, support remote maintenance and monitoring;
With grid-connected charge and discharge, off-grid independent inverter function;
Support on/off grid automatic switching;
Choose our benefits

Create considerable economic benefits through flexible operating strategies

Improve the safety and reliability of the grid

Increase the use of renewable energy and reduce carbon emissions

Emergency backup power when power off

Avoid the upgrading of grid and achieve the expected effect quickly

MEGA 400v MEGA 208v wye (Americas) MEGA 208v high (Americas) MEGA 480v (Americas)
ModelMEGA0030TSMEGA0050TS MEGA0100TSMEGA0150TSMEGA0250TSMEGA0500TS
DC(battery)
Voltage range (V)250~850320~850420~850420~850420~850500~850
Max. current (A)1371782704056731,128
AC(on-grid)
Max. output power (kVA)3355110165275550
Rate output power (kW)3050100150250500
Rated voltage (V)400
Voltage range (V)320~460
Rated current (A)4372144216361722
Max. output current (A)4880159238397794
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
AC(off-grid)
Rated voltage (V)400
THDu＜1% Linear ＜5% Nonlinear
Rated frequency (Hz)50/60
Overload capacity110%long-term
General data
Max.efficiency96.3%96.5%97.1%97.1%97.3%97.5%
Ingress protectionIP21
Noise emission (dB)<70
Operating temperature (℃)-30～55
Cooling Forced air
Relative humidity 0 ~95% non-condensing
Operating altitude5,000m(>3,000 Derating)
Dimension W*D*H (mm)800*800*1,900800*800*1,900800*800*1,900800*800*1,9001,200*800*2,0501,600*1050*2,050
Net weight(kg)6217129361,0571,5822,665
Transformer ratio100/400200/400270/400270/400270/400315/400
Self-consumption (W)<100<208
On/ Off grid switchingAutomatic
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communication RS485, TCP/IP
Certificates IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC

ModelMEGA0030TSMEGA0050TS MEGA0100TSMEGA0150TSMEGA0250TS
AC(on-grid)
Max. output power (kVA)3355110165275
Rate output power (kW)3050100150250
Rated voltage (V)208
Voltage range (V)166~239
Rated current (A)83139278416694
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE
Transformer ratio100/208200/208270/208270/208270/208
AC(off-grid)
Max. output power (kVA)3355110165275
Rate power (kW)3050100150250
Rated voltage (V)208
Rated current (A)83139278416694
THDu≤1% linear; or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
Battery
Battery voltage range (V)250~850320~850420~850420~850420~850
Max current(A)137178270405673
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,900800*800*2,050800*800*2,0501,200*800*2,050
Net weight(kg)6056769171,0571,609
Operating temperature (℃)-30～55
Relative humidity 0 ~95% non-condensing
Ingress protectionIP21
Noise emission (dB)<70
Operating altitude5,000m(>3,000 Derating)
Cooling Air Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN


ModelMEGA0030TSMEGA0050TS MEGA0100TSMEGA0150TSMEGA0250TS
AC(on-grid)
Max. output power (kVA)3355110165275
Rate output power (kW)3050100150250
Rated voltage (V)208V High-legDelta with split phase
Voltage range (V)166~239
Rated current (A)72120240361601
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE/Delta
Transformer ratio100/240200/240270/240270/240270/240
AC(off-grid)
Max. output power (kVA)3355110165275
Rate power (kW)3050100150250
Rated voltage (V)208V High-legDelta with split phase
Rated current (A)72120240360601
THDu≤1% linear; or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
Battery
Battery voltage range (V)250~850320~850420~850420~850420~850
Max current(A)137178270405673
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,900800*800*2,050800*800*2,0501,200*800*2,050
Net weight(kg)6056769171,0571,609
Operating temperature (℃)-30～55
Relative humidity 0 ~95% non-condensing
Ingress protectionIP21
Noise emission (dB)<70
Operating altitude5,000m(>3,000 Derating)
Cooling Air Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN


ModelMEGA0030TSMEGA0050TS MEGA0100TSMEGA0150TSMEGA0250TSMEGA0500TS
AC(on-grid)
Max. output power (kVA)3355110165275550
Rate output power (kW)3050100150250500
Rated voltage (V)480
Voltage range (V)384~552
Rated current (A)3761121181301601
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE
Transformer ratio100/480200/480270/480270/480270/480315/480
AC(off-grid)





Max. output power (kVA)3355110165275550
Rate power (kW)3050100150250500
Rated voltage (V)480
Rated current (A)3761121181
301
601
THDu≤1% linear; or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
Battery
Battery voltage range (V)250~850320~850420~850420~850420~850500~850
Max current(A)1371782704056731128
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,900800*800*1,900800*800*1,9001,200*800*2,0501,600*1050*2,050
Net weight(kg)6056769171,0571,6092,665
Operating temperature (℃)-30～55
Relative humidity 0 ~95% non-condensing
Ingress protectionIP21
Noise emission (dB)<70
Operating altitude5,000m(>3,000 Derating)
Cooling Air Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN
