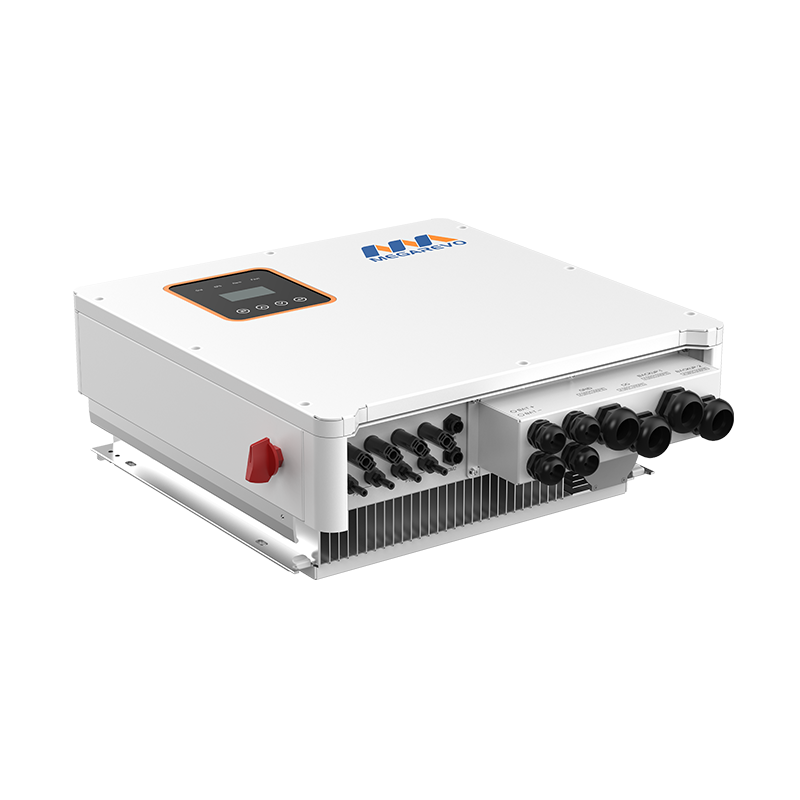

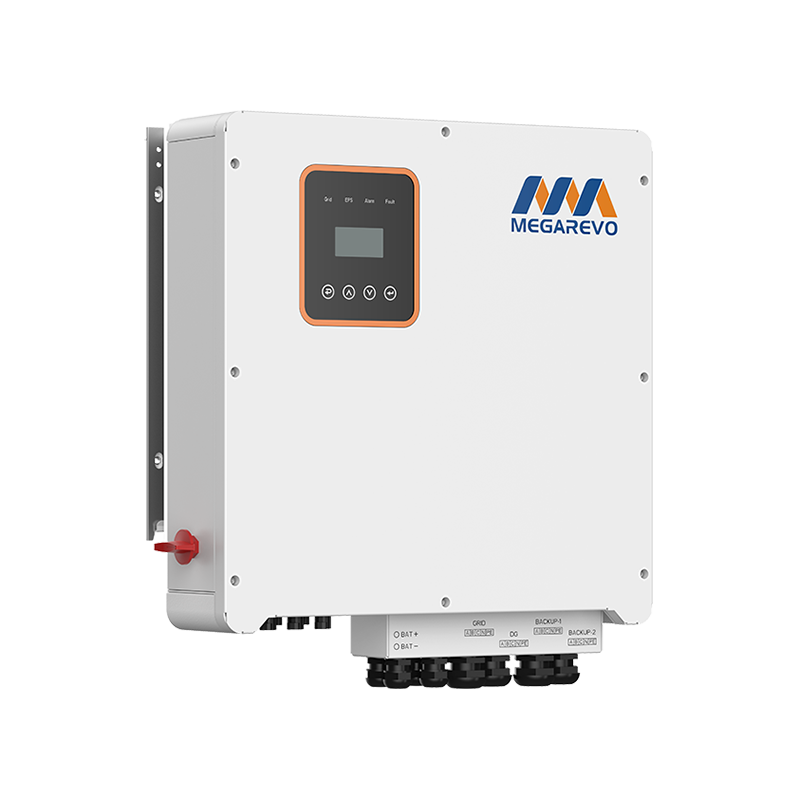

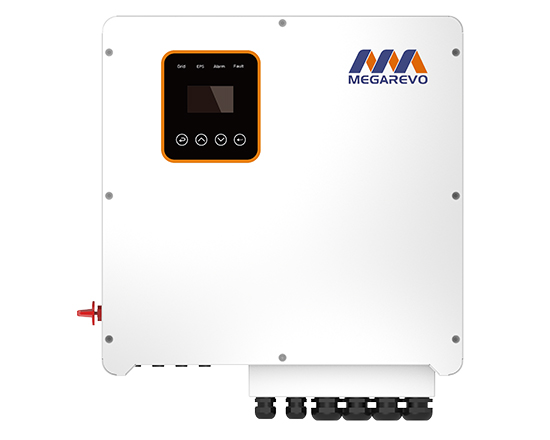

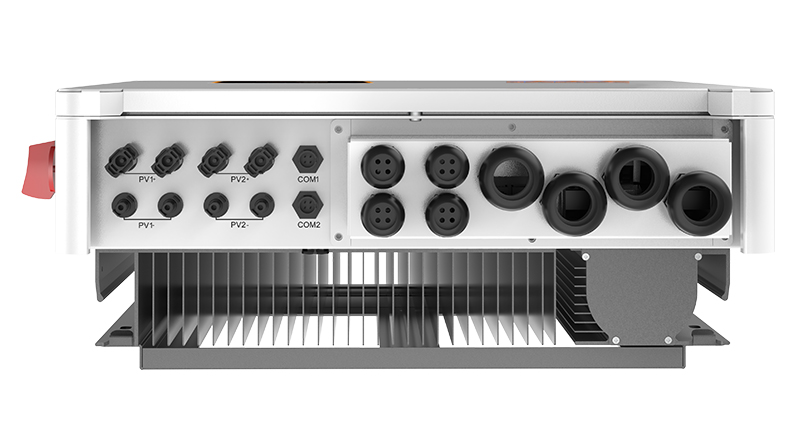

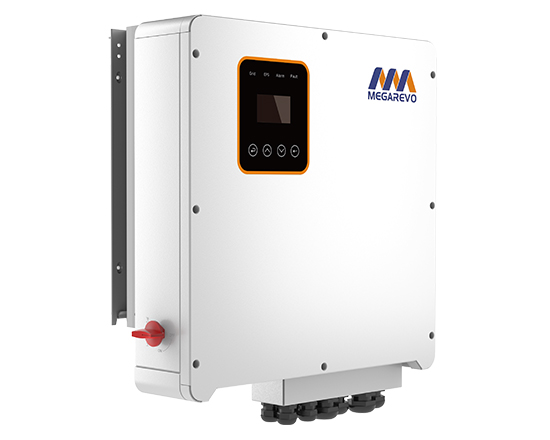

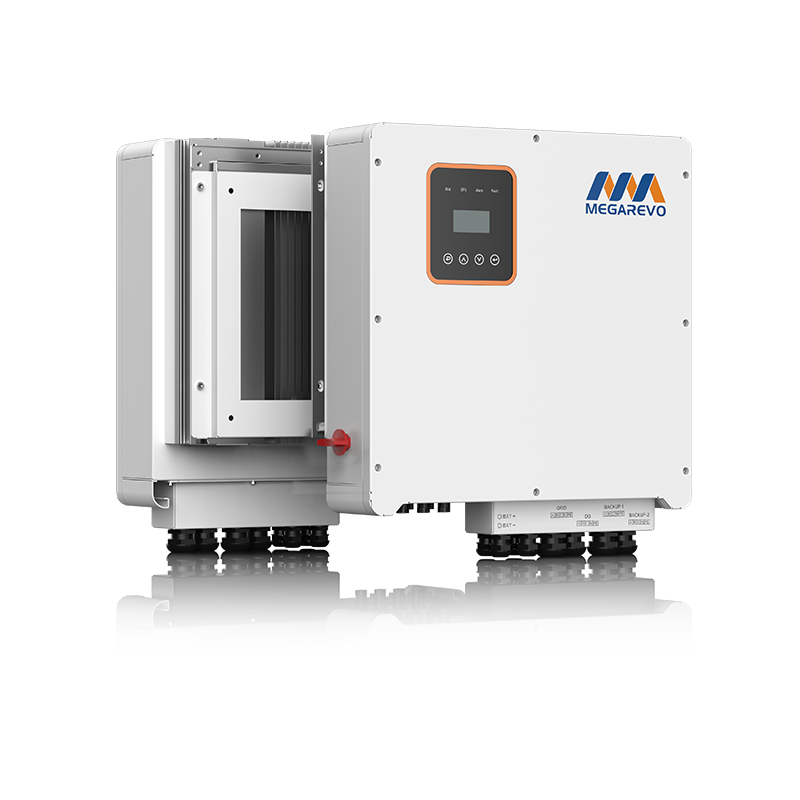

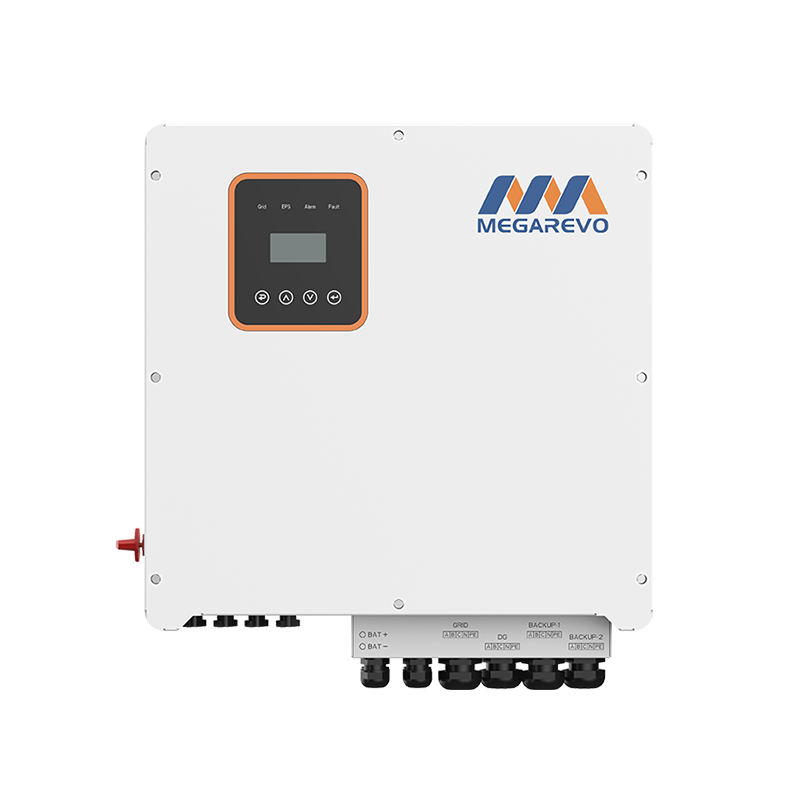

H3 Series 3-phase hybrid inverter has four power rates, including 8kW, 10kW, 12kW and 15kW, compatible with single-phase load and three-phase load and supports 100% unbalanced load. The maximum efficiency can reach 97.9%. 3-phase hybrid inverters are designed to increase energy independence for homeowners.
Reduce electricity costs by 50% per year
Free energy available at night
Participate in peak load shifting to gain additional economic benefits
keeping critical load operation in power off
Support 7*24 remote service
| Model | R6KH3 | R8KH3 | R10KH3 | R12KH3 | R15KH3 |
| PV string input | |||||
| Max.PV input power (kW) | 9 | 12 | 15 | 18 | 22.5 |
| Max. PV voltage (V) | 1,000 | ||||
| MPPT voltage range (V) | 180~850 | ||||
| Full power MPPT voltage range (V) | 250~850 | 330~850 | 430~850 | 510~850 | 620~850 |
| Min. input voltage/start-up voltage (V) | 125/180 | ||||
| Max. input current per MPPT (A) | 13/13 | ||||
| Max. short-circuit current (A) | 16/16 | 16/16 | 16/16 | 16/16 | 25/25 |
| No. of MPPT trackers | 2 | ||||
| No. of strings per MPPT trackers | 1/1 | 1/1 | 1/1 | 1/1 | 2/2 |
| Rated PV input voltage (V) | 700 | ||||
| AC Output | |||||
| Nominal output power to grid (kVA) | 6 | 8 | 10 | 12 | 15 |
| Max. apparent power to grid (kVA) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Max. apparent power from grid (kVA) | 13.2 | 17.6 | 22 | 26.4 | 33 |
| Max. apparent current from grid (A) | 19.1 | 25.5 | 31.8 | 38.2 | 47.6 |
| Nominal output current to grid (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max.output current to grid (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Nominal grid voltage (V) | 380/400，3W+N+PE | ||||
| Nominal grid frequency (Hz) | 50/60 | ||||
| THDi | ＜3% | ||||
| Battery | |||||
| Max.charging /discharging power (kW) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Battery voltage range (V) | 125~600 | ||||
Battery optimal operating voltage range (V) | 150~550 | ||||
| Max.charging /discharging current (A) | 50 | ||||
| Rated.charging /discharging current (A) | 40 | ||||
| Battery type | Lithium /Lead acid | ||||
| Communication interface | CAN | ||||
| EPS output | |||||
| Nominal output power (kVA) | 6 | 8 | 10 | 12 | 15 |
| Max. apparent power (kVA) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Nominal output current (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max.output current (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Nominal output voltage (V) | 400 ,3W+N+PE | ||||
| Nominal output frequency (Hz) | 50/60 | ||||
| THDu | ＜2% | ||||
| Max.efficiency | 97.9% | 97.9% | 98.2% | 98.2% | 98.5% |
| Europe efficiency | 97.2% | 97.2% | 97.5% | 97.5% | 97.6% |
| MPPT efficiency | ≥99.5% | ||||
| Max.battery charge/discharge efficiency | 97.5% | 97.5% | 97.5% | 97.6% | 97.8% |
| General Data | |||||
| Ingress protection | IP65 | ||||
| Operating temperature range (℃) | -25~60 | ||||
| Relative humidity | 0~95% | ||||
| Operating altitude (m) | 2,000 (>2,000 Derating) | ||||
| Dimensions W*H*D (mm) | 566*596*220 | ||||
| Net weight (kg) | 32 | ||||
| Self-consumption at night (W) | ＜15 | ||||
| Cooling | Natural | ||||
| Noise emission (dB) | ≤35 | ||||
| EMC | IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011 | ||||
| On-grid Standards | Europe: EN 50549-1:2019/AC:2019, Poland:EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany:VDE-AR-N 4105:2018 /DIN VDE V 0124-100(VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, UK:G98/G99/1-6:2022, Spain:UNE217001:2020 /UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary:EN50549-1:2019/RFG:2016/ Hungary, Italy CEI0-21 | ||||
| Safety standard | IEC/EN62109-1:2010, IEC/EN62109-2:2011 | ||||
| Display and communication | |||||
| HMI | LCD; APP | ||||
| BMS | CAN | ||||
| EMS/Meter | RS485/RS485 | ||||
| Supported communication interface | WIFI / GPRS | ||||
| Model | R6KH3-P | R8KH3-P | R10KH3-P | R12KH3-P | R15KH3-P |
| PV string input | |||||
| Max.PV input power (kW) | 9 | 12 | 15 | 18 | 22.5 |
| Max. PV voltage (V) | 1,000 | ||||
| MPPT voltage range (V) | 180~850 | ||||
| Full power MPPT voltage range (V) | 250~850 | 330~850 | 430~850 | 510~850 | 425~850 |
| Start-up voltage (V) | 125 | ||||
| Max. input current per MPPT (A) | 18/18 | 18/18 | 18/18 | 18/18 | 20/20 |
| Max. short-circuit current (A) | 25/25 | 25/25 | 25/25 | 25/25 | 30/30 |
| No. of MPPT trackers | 2 | ||||
| MPPT number/Max. input strings number | 1/1 | 1/1 | 1/1 | 1/1 | 2/2 |
| Rated input voltage | 600 | ||||
| AC Output | |||||
| Nominal output power to grid (kVA) | 6 | 8 | 10 | 12 | 15 |
| Max. apparent power to grid (kVA) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Max. apparent power from grid (kVA) | 13.2 | 17.6 | 22 | 26.4 | 33 |
| Max. apparent current from grid (A) | 19.1 | 25.5 | 31.8 | 38.1 | 47.6 |
| Nominal output current to grid (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max.output current to grid (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Nominal grid voltage (V) | 3W+N+PE, 220 / 380 V; 230 / 400 V; 240 / 415 V | ||||
| Nominal grid frequency (Hz) | 50/60 | ||||
| THDi | ＜3% | ||||
| Battery | |||||
| Max.charging /discharging power (kW) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Battery voltage range (V) | 125~600 | ||||
| Battery Working Voltage Range (V) | 150~550 | ||||
| Min.Full Power Voltage@EPS | 160 | 210 | 260 | 310 | 385 |
| Max.Charging/Discharging Current (A) | 50 | ||||
| Rated.charging /discharging current (A) | 40 | ||||
| Battery type | Lithium and Lead Acid Battery | ||||
| ESP Output | |||||
| Nominal output power (kVA) | 8 | 8 | 10 | 12 | 15 |
| Max. apparent power (kVA) | 8.8 | 8.8 | 11 | 13.2 | 16.5 |
| Nominal output current (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max.output current (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Nominal output voltage (V) | 400 ,3W+N+PE | ||||
| Nominal output frequency (Hz) | 50/60 | ||||
| THDu | ＜2% | ||||
| Max.efficiency | 97.9% | 97.9% | 98.0% | 98.0% | 98.1% |
| Europe efficiency | 97.3% | 97.4% | 97.5% | 97.5% | 97.5% |
| MPPT efficiency | 99.9% | ||||
| Max.battery charge/discharge efficiency | 97.0% | ||||
| General Data | |||||
| Ingress protection | IP65 | ||||
| Operating temperature range (℃) | -35~60 | ||||
| Relative humidity | 0~100% | ||||
| Operating altitude (m) | 2000m(Derating above 2000m) | ||||
| Dimensions (W*H*D) | 530*560*220mm | ||||
| Weight | 32kg | ||||
| Cooling | Natural convection | ||||
| Noise emission (dB) | ≤35 | ||||
| Installation | Wall mounted | ||||
| Supported protections | Island Protection / PV reverse polarity protection / Battery reverse polarity protection / Insulation monitoring / Residual current monitoring / AC over current protection / AC over power protection / Back-up Output Short Protection / Short circuit protection / Island Protection / Battery reverse Polarity / Insulation Resistor Detection | ||||
| EMC | IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011 | ||||
| On-grid Standards | Europe: EN 50549-1:2019/AC:2019, Poland:EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany:VDE-AR-N 4105:2018 /DIN VDE V 0124-100(VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, UK:G98/G99/1-6:2022, Spain:UNE217001:2020 /UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary:EN50549-1:2019/RFG:2016/ Hungary, Italy CEI0-21, Holland:EN 50549-1:2019/AC:2019 with Netcode elektriciteit:2022 Type A, Belgium:C10/11:2021, France:Arrêté du 9 juin 2020+Arrêté du 31 mai 2021, Denmark:TR 3.3.1:2023-01 | ||||
| Safety standard | IEC/EN62109-1:2010, IEC/EN62109-2:2011 | ||||
| Interface | |||||
| HMI | LCD; APP | ||||
| BMS | CAN | ||||
| EMS/Meter | RS485/RS485 | ||||
| Supported communication interface | WIFI | ||||
