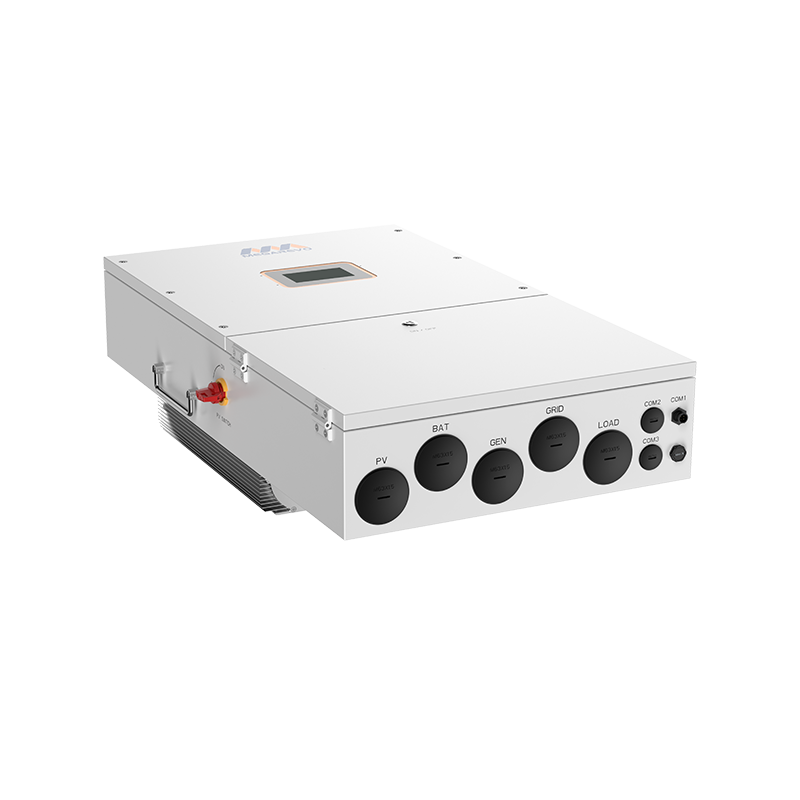

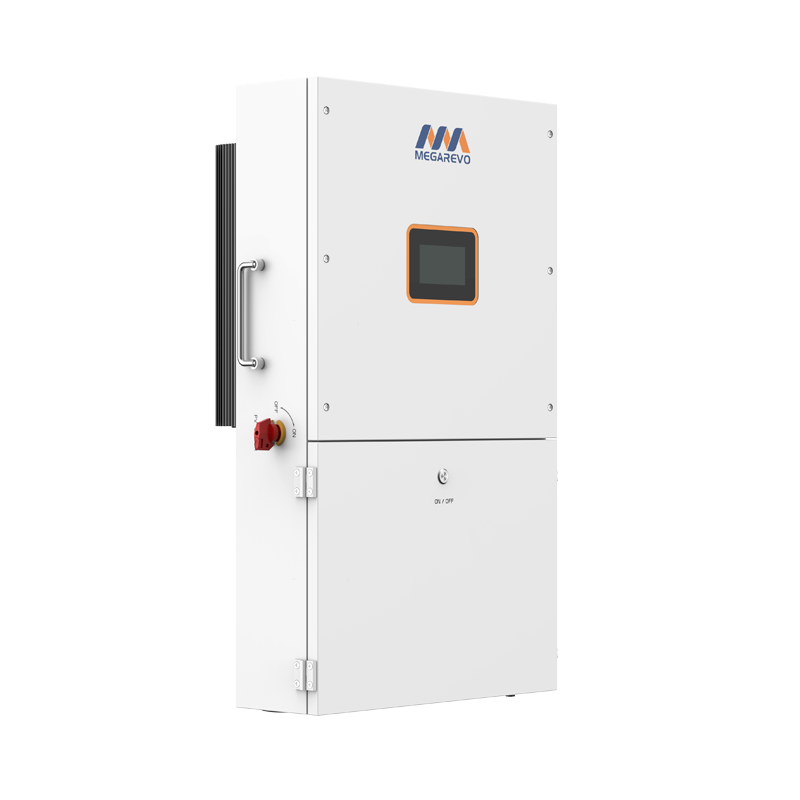

The split-phase hybrid inverter automatically matches mainstream batteries, is UL certified, integrates a breaker, supports two independent battery strings, and features a 200A pass-through with 100% unbalanced load capability.
Reduce electricity costs by 50% per year
Free energy available at night
Participate in peak load shifting to gain additional economic benefit
keeping critical load operation in power of
Support 7*24 remote service
Model | R16KH2NA | R18KH2NA | R20KH2NA | R22KH2NA | R24KH2NA |
PV input data | |||||
Max. PV input power (kW) | 24 | 27 | 30 | 33 | 36 |
Max. PV input voltage (V) | 500 | ||||
Min. PV input voltage (V) | 120 | ||||
Start-up voltage (V) | 120 | ||||
MPPT voltage range (V) | 120~500 | ||||
MPPT voltage range@full-load (V) | 150~430 | ||||
Rated PV input voltage (V) | 310 | ||||
No. of MPPT trackers | 4 | ||||
No. of strings per MPPT tracker | 2/2/2/2 | ||||
Max. input current per MPPT (A) | 32/32/32/32 | ||||
Max. short-circuit current per MPPT (A) | 44/44/44/44 | ||||
Battery input data | |||||
Battery type | Lithium-ion / Lead-acid | ||||
Max. charge / discharge power (kW) | 16 | 18 | 20 | 22 | 24 |
Battery voltage range (V) | 120~400 | ||||
Battery voltage range@full-load (V) | 160-400 | 180-400 | 200-400 | 220-400 | 240-400 |
Max. charging / discharging current (A) | 50+50 / 50+50 | ||||
Rated charge / discharge current (A) | 50+50 / 50+50 | ||||
Power factor | 0.8 leading - 0.8 lagging | ||||
Battery charging strategy | Self-adaption to BMS | ||||
BMS communication | CAN | ||||
AC output data (grid side) | |||||
Rated output power (kW) | 16 | 18 | 20 | 22 | 24 |
Max. apparent output power (kVA) | 16 | 18 | 20 | 22 | 24 |
Max. apparent input power(kVA) | 16 | 18 | 20 | 22 | 24 |
Rated grid voltage (V) | 120/240 | ||||
Grid voltage range (V) | 211~264 | ||||
Grid input voltage (V) | 240 | ||||
Rated grid frequency (Hz) | 60 | ||||
Grid frequency range(Hz) | 58.8~61.2 | ||||
Rated output current (A) | 66.6 | 75 | 83.3 | 91.6 | 100 |
Max. AC output current (A) | 66.6 | 75 | 83.3 | 91.6 | 100 |
Max. apparent input current (A) | 66.6 | 75 | 83.3 | 91.6 | 100 |
Max. grid passthrough current(A) | 200 | ||||
Grid type | L1/L2+N+PE | ||||
AC output data (load side) | |||||
Rated output power (kW) | 16 | 18 | 20 | 22 | 24 |
Max. apparent output power (kVA) | 16 | 18 | 20 | 22 | 24 |
Max. apparent input power(kVA) | 16 | 18 | 20 | 22 | 24 |
Rated output voltage (V) | 120 / 240 | ||||
Rated output frequency (Hz) | 60 | ||||
Rated output current (A) | 66.6 | 75 | 83.3 | 91.6 | 100 |
Max. AC output current (A) | 200 | ||||
Back-up switch time (ms) | <20 | ||||
Protection | |||||
Supported protection | PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, Arc fault protection, AC output over-current protection | ||||
Surge protection | DC Type II / AC Type II | ||||
Over voltage category | DC Type II / AC Type III | ||||
General data | |||||
Ingress protection | IP65 | ||||
Operating temperature range (℃) | -25~+60 | ||||
Cooling | FAN cooling | ||||
Relative humidity | 0-85% | ||||
Operating altitude (m) | / | ||||
Dimensions W*D*H (mm) | / | ||||
Weight (kg) | / | ||||
Topology (solar / battery) | Transformerless / Transformerless | ||||
Noise emission (dB) | / | ||||
Display and communication | |||||
Display | Touch panel | ||||
Communication | RS485,CAN,WIFI,4G |
