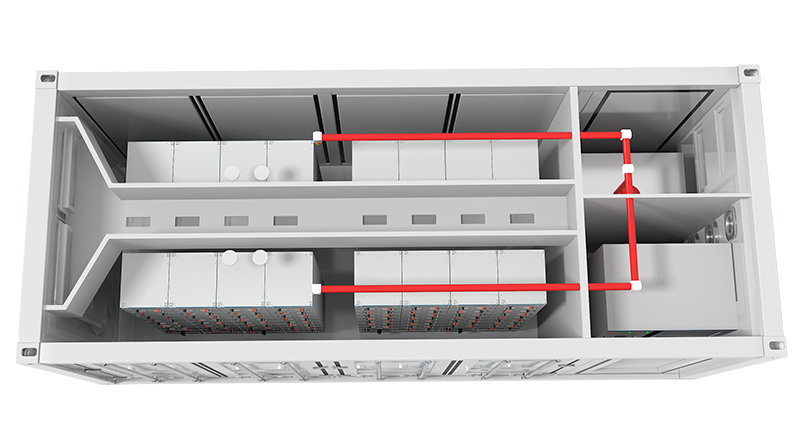

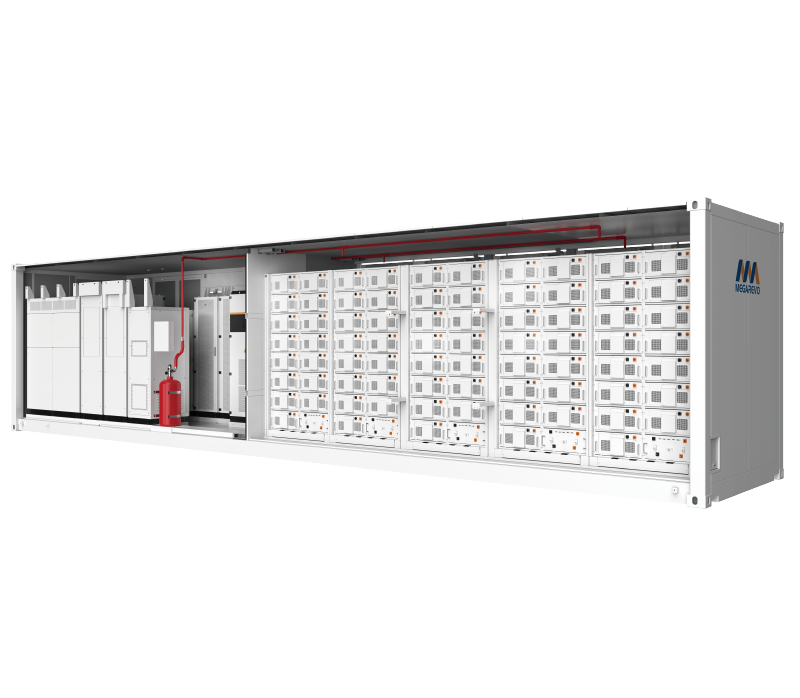

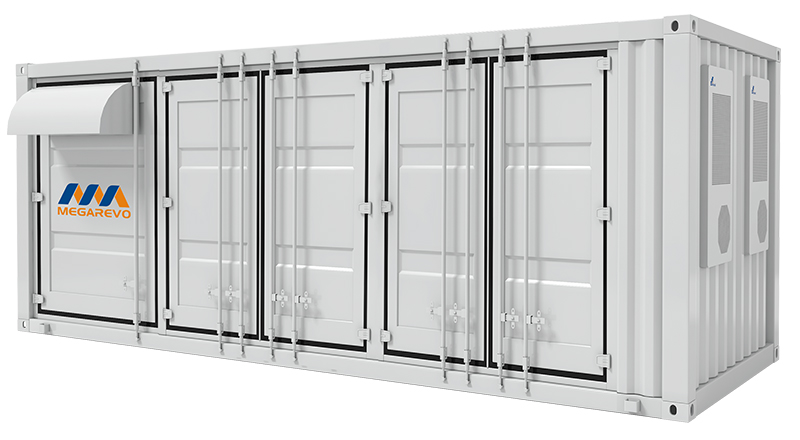

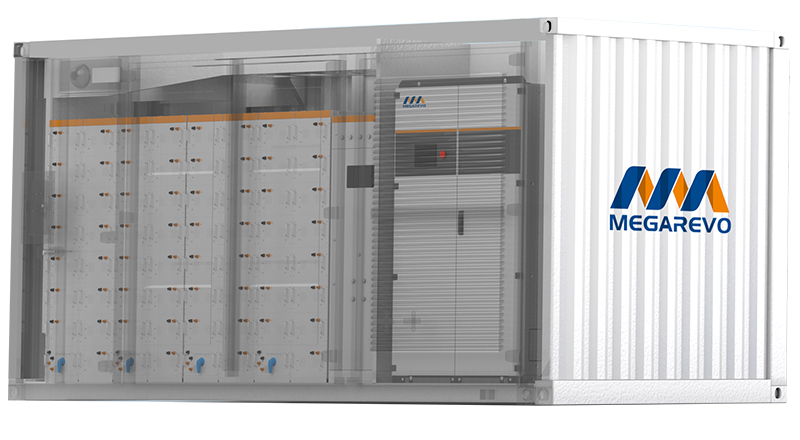

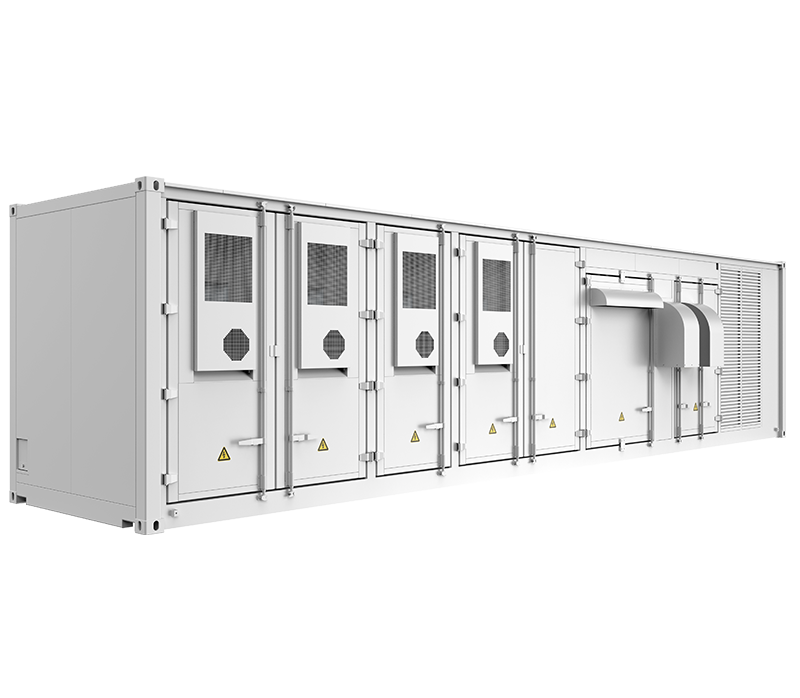

In order to reduce the production losses caused by power outages in summer, Megarevo has launched 20-foot high-energy-density ESS. The DC side consists of eight 138kWh lithium battery energy units, and the AC side uses MEGA series PCS, through the EMS operation strategy, interacts with the grid in a friendly way, and provides power support for customers during power limited period.

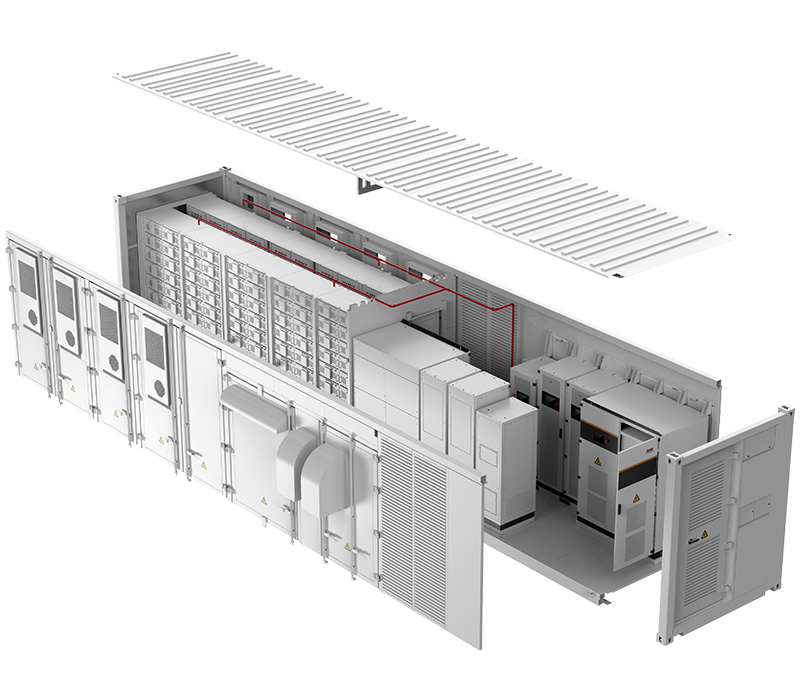

Integrated design for easy transportation and installation
Reduce system operating costs
Can be used for a variety of backup purposes
Turnkey projects
Support 7*24 remote service
Model | ESSC0500B-1000 | ESSC1000B-2000 |
AC data | ||
Rated power (kW) | 500 | 1,000 |
Rated voltage (V) | 400 | |
Rated current (A) | 722 | 1,445 |
Voltage range (V) | 320-460 | |
Rated frequency(Hz) | 50/60 | |
Frequency range(Hz) | 45-55 / 55-65 | |
THDi (on-grid) | <3% | |
THDu (off-grid) | ≤ 1% linear; ≤ 5% non-linear | |
Power factor | 1leading~1lagging(settable) | |
Overload capacity | 110% long-term | |
AC output | 3W+N+PE | |
Isolation transformer | 315/400 | |
On / off-grid switching | Support | |
PV data | ||
Max. PV input voltage (V) | 1,000 | |
Max. PV power (kW) | 600/660/720 | 1,200/1,320/1,440 |
MPPT operating voltage range (V) | 250~850 | |
Buck-boost mode | Support | |
Battery data | ||
Cell type | 3.2V/280Ah/LFP | |
Nominal voltage (V) | 768V/1P240S | |
Nominal energy (MWh) | 1.0752 | 2.1504 |
Working voltage range (V) | 672~850V | |
Max. charge and discharge rate | 0.5C@25℃ | |
Number of battery cycles | ≥6,000 | |
System data | ||
System specification | 500kW/1,075.2kWh (1000kWh) | 1,000kW/2,150.4kWh (2000kWh) |
Dimensions W *D *H (mm) | 6,058×2,438×2,896 | 12,192×2,438×2,896 |
Net weight (kg) | 21,000 | 38,000 |
Operating temperature (℃) | 0~+45 | |
Relative humidity | 0 ~95%(non-condensing) | |
Ingress protection | IP54 | |
Noise emission (dB) | <75 | |
Max. operating altitude (m) | 5,000(>3,000 derating) | |
Cooling | Intelligent air cooling | |
Fire extinguishing system | FM200/NOVEC1230(optional) | |
Display | 7”device display +10” EMS display +10”BMS display (configurable) | |
EMS communication | RS485, TCP/IP |
