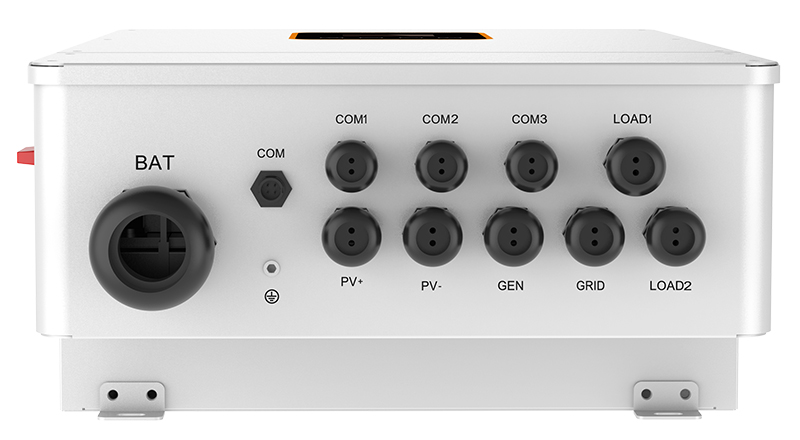

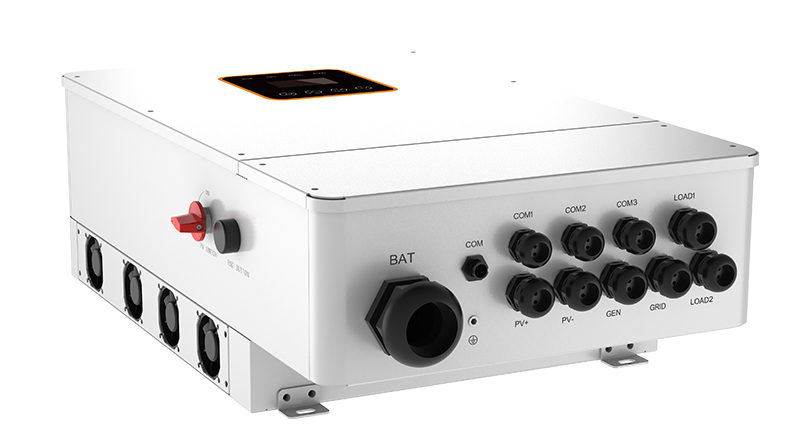

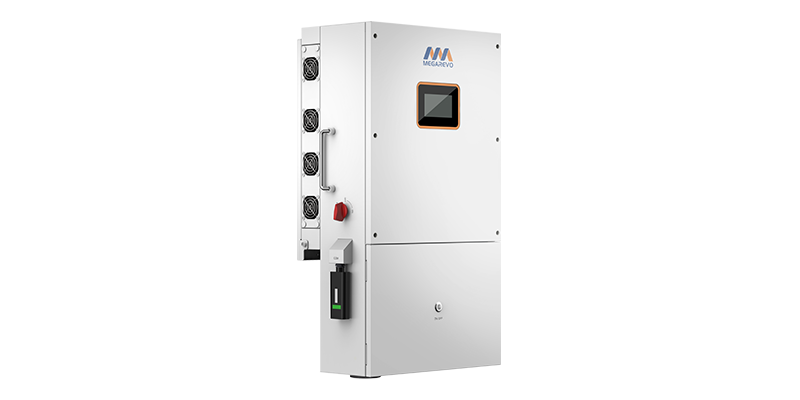

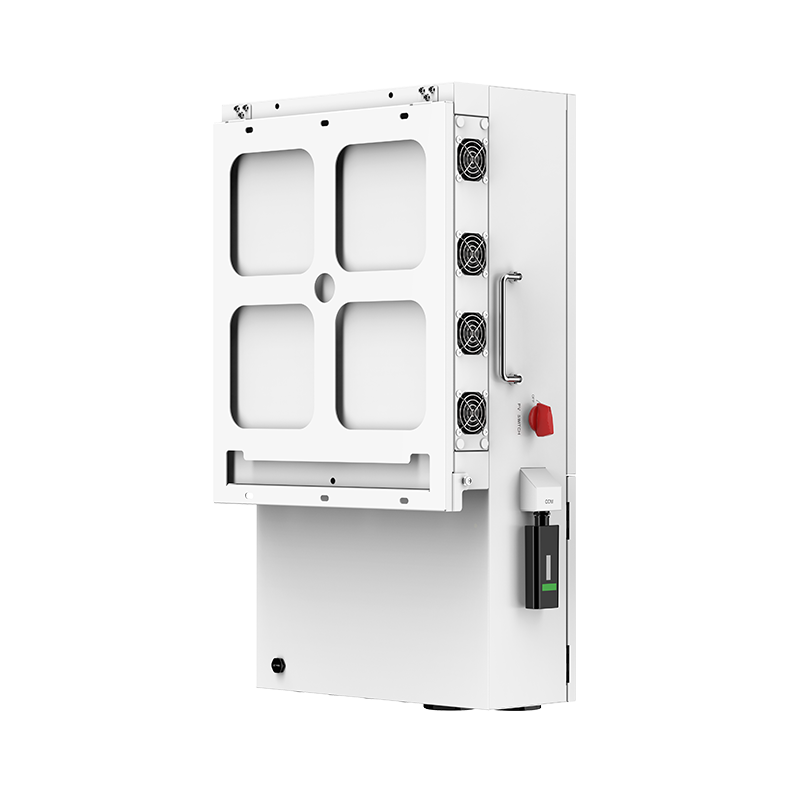

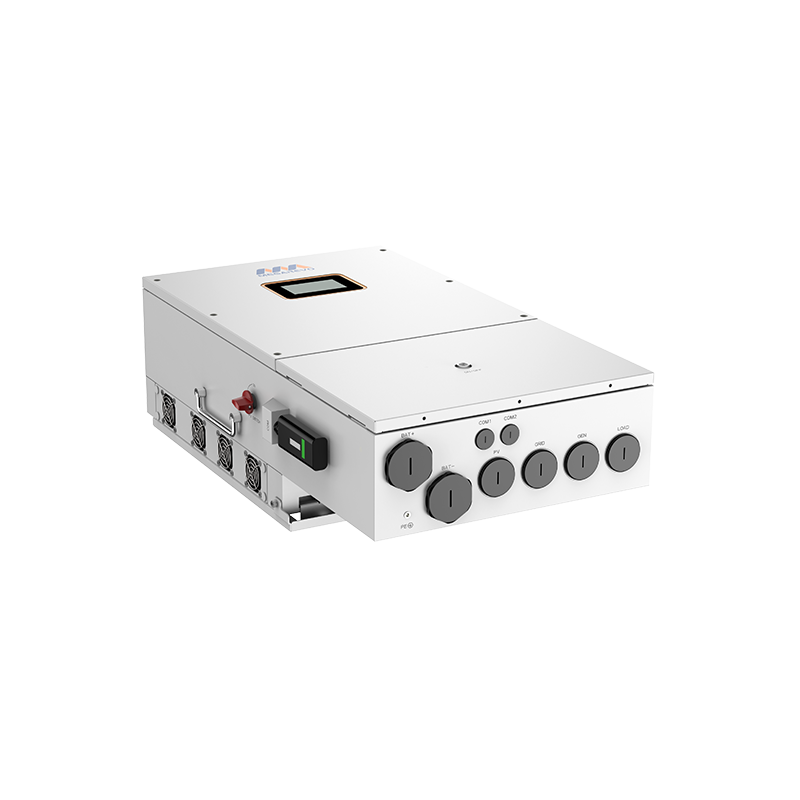

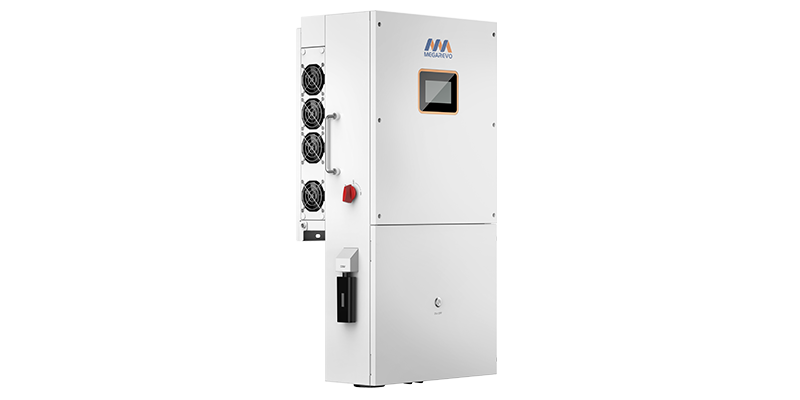

The North American low-voltage hybrid inverter series is specifically designed for home energy storage, featuring a 48V battery system and split-phase output. With support for parallel connection of up to 6 devices, the Megarevo hybrid split phase inverter, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.

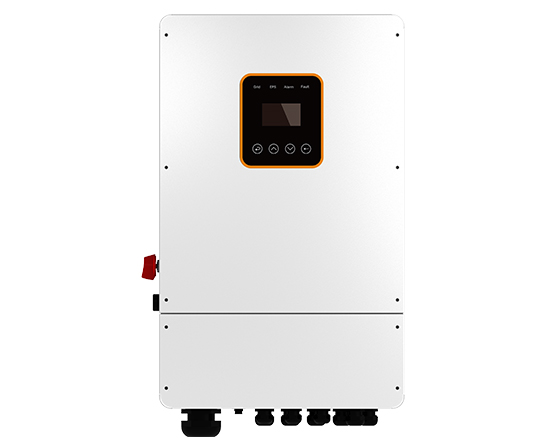

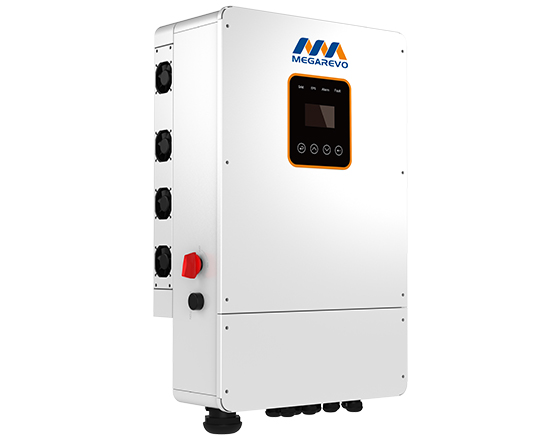

American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
American Split-Phase Hybrid Inverter(Battery Low Voltage)
Product Highlights
Safe and Reliable
Megarevo’s split phase hybrid inverter has passed UL 1741:2021, IEEE 1547.1, UL 1699B, and South Africa’s NRS097-2-1:2017, demonstrating compliance with key grid-interconnection and safety standards.
Friendly and Flexible
Megarevo split phase hybrid inverter supports multi-machine parallel connection and parallel operation with a shared battery pack. Each single unit offers a load capacity of 100A. The inverter enables users to easily expand system capacity and ensure a stable power supply for residential applications.
Economical and Efficient
Our 48V split phase inverter supports parallel SOC equalization control and parallel current sharing control. By using a split-phase topology that eliminates the need for transformers, its system achieves higher efficiency. The inverter supports both the diesel generator and grid access simultaneously, ensuring a reliable and flexible power supply.
Why Choose Megarevo

【Reduce Electricity Costs by 50% Per Year】The split phase inverter 48V increases solar self-consumption by storing excess daytime energy for night use. With 4 MPPT trackers optimizing power generation under different roof conditions, users can further reduce grid dependence and lower overall electricity bills.

【Free Energy Available at Night】The 48V split phase inverter stores excess solar energy in the battery during the day. At night, the system automatically supplies power from the battery to household loads, ensuring continuous energy use and reducing dependence on the grid.

【Participate in Peak Load Shifting to Gain Additional Economic Benefits】Megarevo’s split phase hybrid inverter participates in peak load shifting to lower energy bills and maximize economic returns by storing excess solar power during the day and using it during evening or peak-demand hours.

【Keeping Critical Load Operation in Power Off】The Megarevo split phase hybrid inverter ensures continuous operation of critical household loads during power outages, providing reliable backup power for essential appliances and systems.

【Support 7*24 Remote Service】The split phase hybrid inverter 48v supports 7×24 remote service, allowing real-time monitoring, diagnostics, and management to ensure reliable operation and reduce maintenance costs.

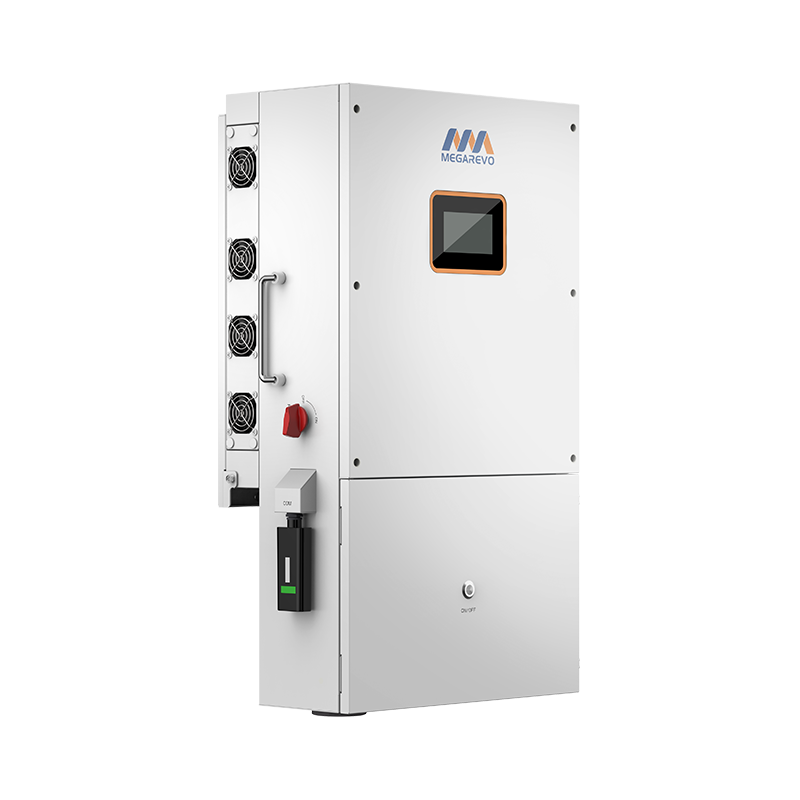

R(5-10)KLNA
ModelR5KLNAR6KLNAR7K6LNAR8KLNAR10KLNA
PV input data
Max. PV input power (kW)7.59121215
Max. PV input voltage (V)500
Min. PV input voltage (V)120
Start-up voltage (V)120
MPPT voltage range (without battery)(V)120~500
MPPT voltage range@full-load (V)150~430
Rated PV input voltage (V)310
No. of MPPT trackers4
No. of strings per MPPT tracker1/1/1/1
Max. input current per MPPT (A)14/14/14/14
Max. short-circuit current per MPPT (A)22/22/22/22

Battery input data
Battery typeLithium-ion / Lead-acid
Max. charge / discharge power (kW)567.6810
Battery voltage range (V)40~60
Rated battery voltage (V)48
Max. charging / discharging current (A)120/120135/135190/190190/190190/210
Rated charge / discharge current (A)120/120135/135190/190190/190190/210
Battery charging strategySelf-adaption to BMS
BMS communication CAN

AC output data (grid side)
Rated output power (kW)567.68
10
Max. apparent output power (kVA)5.56.68.48.811
Rated grid voltage( (V)110-127/208-240V split phase, 240V single phase
Grid voltage range (V)192~288
Rated grid frequency (Hz)60
Grid frequency range(Hz)55 to 65
Rated output current (A)20.82531.733.341.7
Max. AC output current (A)22.927.534.836.745.8
Power factor0.8leading~0.8lagging
Max. grid passthrough current(A)100
THDi<3%
Grid type2L+N+PE

AC output data (load side)
Rated output power (kW)567.6810
Max. apparent output power (kVA)5.56.68.48.811
Rated output voltage (L-N/L1-L2) (V)120/240
Rated output frequency (Hz)60
Rated output current (A)20.82531.733.341.7
Max. AC output current (A)22.927.534.836.745.8
Peak output power110%,30s / 120%,10s / 150%,0.02s
Back-up switch time (ms)<20
THDu<2%

Protection
Supported protectionArc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection

Leakage current protection, Insulation resistance detection, Backup output short circuit protection,

AC under-voltage protection, AC output over-current protection, AC over-voltage protection

Surge protectionDC Type II / AC Type II
Over voltage categoryDC Type II / AC Type III

Certifications and standards
CertificatesFCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE1547

General data
Ingress protectionIP65 / NEMA 3R
Operating temperature range (℃)-25~+60
CoolingFan cooling
Relative humidity0-95%
Operating altitude (m)0~4,000(Derating above 2,000 altitude)
Dimensions W*D*H (mm)450 x 820 x 240
Weight (kg)47
Topology (solar / battery)Transformerless / Transformer
Noise emission (dB)48

Display and communication
DisplayTouch panel
CommunicationRS485, 4G(optional), Wi-Fi

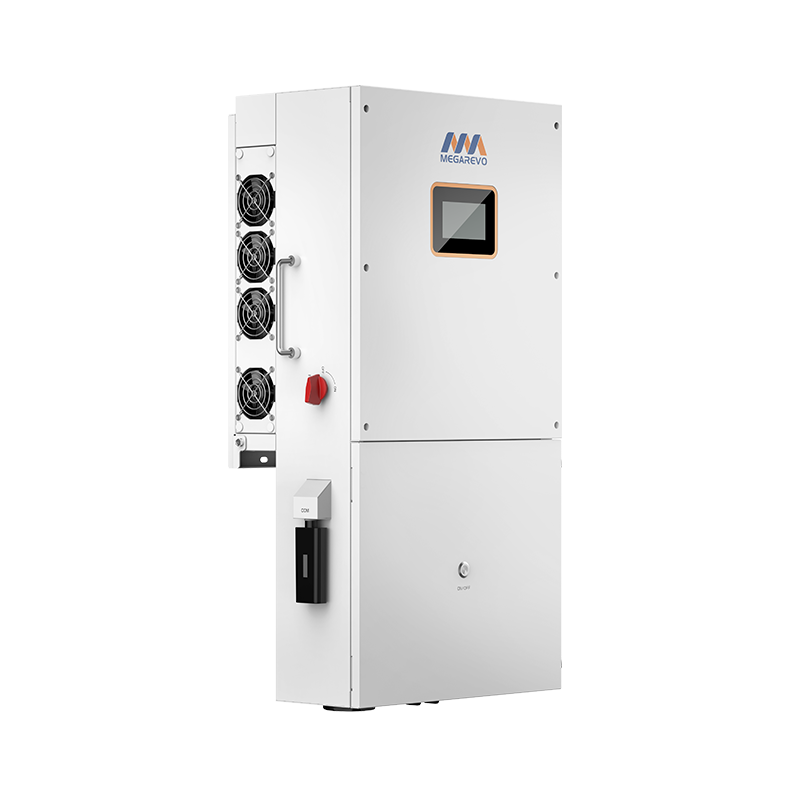

R12KLNA / R16KLNA
ModelR12KLNAR16KLNA
PV input data
Max. PV input power (kW)1824
Max. PV input voltage (V)500
Min. PV input voltage (V)120
Start-up voltage (V)120
MPPT voltage range (without battery)(V)120~500
MPPT voltage range@full-load (V)150~430
Rated PV input voltage (V)310
No. of MPPT trackers4
No. of strings per MPPT tracker1/1/1/1
Max. input current per MPPT (A)16/16/16/1620/20/20/20
Max. short-circuit current per MPPT (A)22/22/22/2225/25/25/25

Battery input data
Battery typeLithium-ion / Lead-acid
Max. charge / discharge power (kW)1213
Battery voltage range (V)40~58
Rated battery voltage (V)48
Max. charging / discharging current (A)250/260260/280
Rated charge / discharge current (A)250/260260/280
Battery charging strategySelf-adaption to BMS
BMS communication CAN

AC output data (grid side)
Rated output power (kW)1216
Max. apparent output power (kVA)13.216
Rated grid voltage( (V)110-127/208-240V split phase, 240V single phase
Grid voltage range (V)240
Rated grid frequency (Hz)60
Grid frequency range(Hz)55~65
Rated output current (A)5066.7
Max. AC output current (A)5573.3
Power factor0.8leading~0.8lagging
Max. grid passthrough current(A)200
THDi<3%
Grid type2L+N+PE

AC output data (load side)
Rated output power (kW)1213
Max. apparent output power (kVA)13.2
Rated output voltage (L-N/L1-L2) (V)120/240
Rated output frequency (Hz)60
Rated output current (A)5054
Max. AC output current (A)5555
Peak output power110%,30s / 120%,10s / 150%,0.02s
Back-up switch time (ms)<20
THDu<2%

Protection
Supported protection

Arc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection

Leakage current protection, Insulation resistance detection, Backup output short circuit protection,

AC under-voltage protection, AC output over-current protection, AC over-voltage protection

Surge protectionDC Type II / AC Type II
Over voltage categoryDC Type II / AC Type III

Certifications and standards
Certificates

FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B,

CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)


General data
Ingress protectionIP65 / NEMA 3R
Operating temperature range (℃)-25~+60
CoolingFAN cooling
Relative humidity0-95%
Operating altitude (m)0~4,000(Derating above 2,000 altitude)
Dimensions W*D*H (mm)495 x 900 x 260
Weight (kg)55
Topology (solar / battery)Transformerless / Transformer
Noise emission (dB)57

Display and communication
DisplayTouch panel
CommunicationRS485, 4G(optional), Wi-Fi
